(Hallite 839) H839 Wiper Seal / Dust Seal
(Hallite 839) H839 Wiper Seal / Dust Seal overview

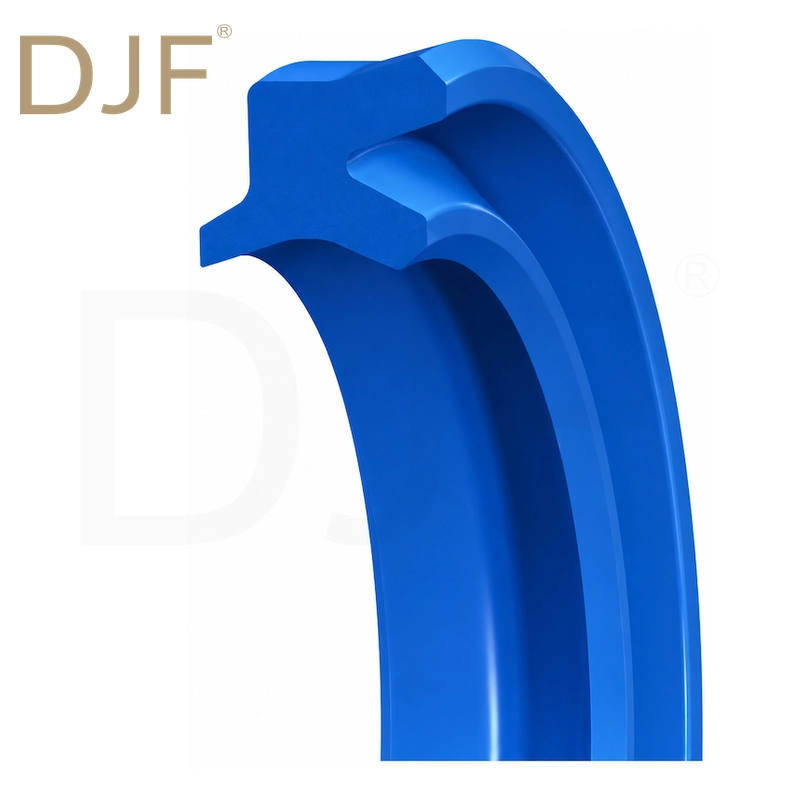

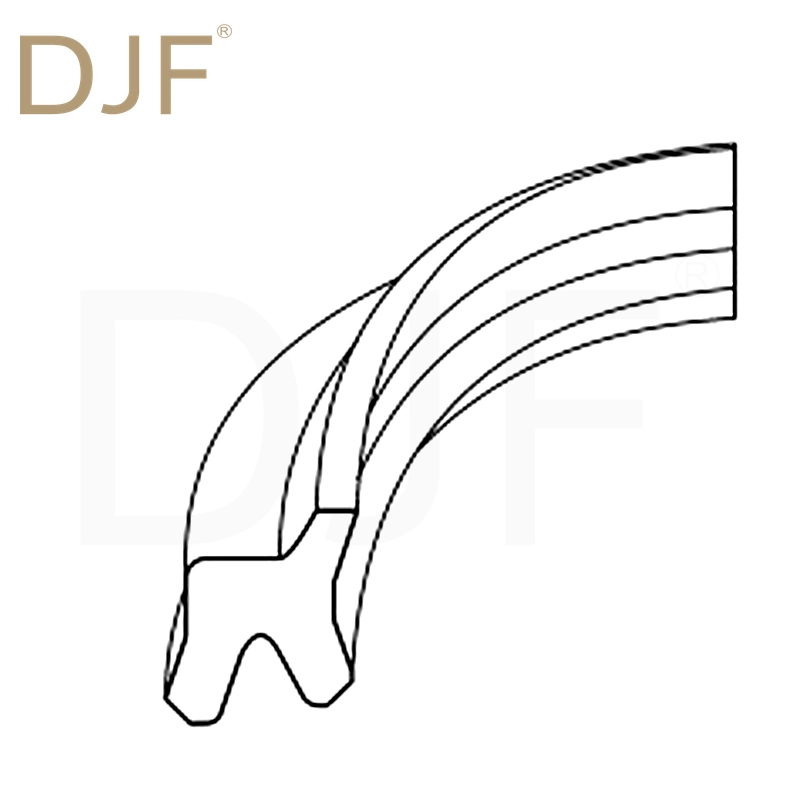

The Hallite 839 (also known as H839) is a high-performance, double-lipped snap-in wiper seal engineered to protect hydraulic cylinder assemblies. Manufactured from Hallite’s proprietary Hythane® 181 polyurethane, this wiper offers exceptional abrasion resistance, elasticity, and long service life in demanding industrial environments.
Its primary wiper lip scrapes away external dirt, mud, and moisture, while the precision-trimmed secondary sealing lip works in reverse to minimize oil transfer and keep the rod clean.
Key parameters
| Parameter | Value |
|---|---|
| Material | Polyurethane/TPU EU |
| Performance | Temperature: -45°C to +110°C, Speed: ≤4 m/s; Rod Diameter Range (Ød1): Metric sizes from 12 mm up to 180 mm |
| Function | To prevent contaminants and moisture from entering the hydraulic cylinder, and to block the passage of leaked oil. |
Available sizes
54 size(s) recorded for this profile. Dimensions in millimetres unless noted otherwise.
| Part Number | Inner Diameter | Outer Diameter | Height | Groove Width |
|---|---|---|---|---|
| H839-4436800 | 12 | 18 | 4 | 7 |
| H839-4436900 | 14 | 20 | 4 | 7 |
| H839-4632000 | 14 | 22 | 4.8 | 7 |
| H839-4762300 | 15 | 22 | 3.8 | 6 |
| H839-4632100 | 16 | 24 | 4.8 | 7 |
| H839-4630800 | 18 | 26 | 4.8 | 7 |
| H839-4437000 | 18 | 24 | 4 | 7 |
| H839-4415000 | 20 | 26 | 4 | 7 |
| H839-4630900 | 20 | 28 | 4.8 | 7 |
| H839-4437100 | 22 | 28 | 4 | 7 |
| H839-4689900 | 22 | 30 | 4.8 | 7 |
| H839-4630100 | 22.4 | 30.4 | 4.8 | 7 |
| H839-4799700 | 25 | 31 | 4 | 7 |
| H839-4631000 | 25 | 33 | 4.8 | 7 |
| H839-4631100 | 28 | 36 | 4.8 | 7 |
| H839-4630200 | 30 | 38 | 5.8 | 8 |
| H839-4632200 | 31.5 | 39.5 | 5.8 | 8 |
| H839-4632300 | 32 | 40 | 5.8 | 8 |
| H839-4630400 | 35.5 | 43.5 | 5.8 | 8 |
| H839-4630306-Orange | 35 | 43 | 5.8 | 8 |
| H839-4632400 | 38 | 46 | 5.8 | 8 |
| H839-4630500 | 40 | 48 | 5.8 | 8 |
| H839-4630600 | 45 | 53 | 5.8 | 8 |
| H839-4630000 | 50 | 58 | 5.8 | 8 |
| H839-4632500 | 53 | 61 | 5.8 | 8 |
| H839-4630700 | 55 | 63 | 5.8 | 8 |
| H839-4632600 | 56 | 64 | 5.8 | 8 |
| H839-4631200 | 60 | 68 | 5.8 | 8 |
| H839-4802400 | 60 | 70 | 6 | 9.7 |
| H839-4632700 | 63 | 71 | 5.8 | 8 |
| H839-4631300 | 65 | 73 | 5.8 | 8 |
| H839-4575300 | 65 | 75 | 6 | 9.7 |
| H839-4437600 | 70 | 80 | 6 | 9.7 |
| H839-4631400 | 70 | 80 | 6.8 | 10 |
| H839-4631500 | 75 | 85 | 6.8 | 10 |
| H839-4631600 | 80 | 90 | 6.8 | 10 |
| H839-4632900 | 85 | 95 | 6.8 | 10 |
| H839-4631700 | 90 | 100 | 6.8 | 10 |
| H839-4631900 | 95 | 105 | 6.8 | 10 |
| H839-4631800 | 100 | 110 | 6.8 | 10 |
| H839-4633000 | 110 | 120 | 6.8 | 10 |
| H839-4437800 | 110 | 125 | 8.5 | 13 |
| H839-4633100 | 112 | 122 | 6.8 | 10 |
| H839-4633700 | 120 | 130 | 6.8 | 10 |
| H839-4633200 | 125 | 138 | 7.8 | 11 |
| H839-4633800 | 130 | 143 | 7.8 | 11 |
| H839-4633300 | 136 | 149 | 7.8 | 11 |
| H839-4633400 | 140 | 153 | 7.8 | 11 |
| H839-4437900 | 140 | 155 | 8.5 | 13 |
| H839-4633500 | 145 | 158 | 7.8 | 11 |
| H839-4633900 | 150 | 163 | 7.8 | 11 |
| H839-4633600 | 160 | 174 | 7.8 | 11 |
| H839-4595600 | 180 | 196 | 9.5 | 14 |
| H839-4591600 | 40 | 48 | 5 | 8 |
Key Features & Benefits
- Superior Wear & Tear Resistance: Made of Hythane® 181 TPU, delivering extended seal life and reduced maintenance intervals.

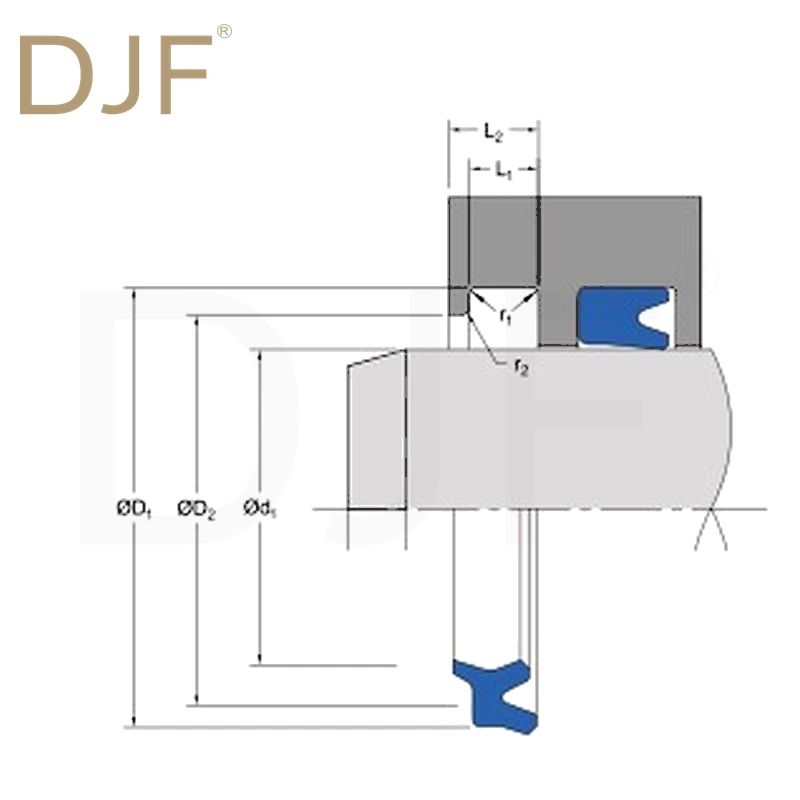

- Enhanced Gland Stability: Features an interference fit in the seal housing groove to prevent movement and block external ingress.
- ISO Housing Compatibility: Engineered to drop directly into standard ISO 6195C-style housing grooves.
- Low Friction & High Speed: Operates smoothly at surface speeds up to 4.0 m/sec.
- Interchangeability: Commonly used as a reliable high-grade alternative or direct replacement for standard dust seals (such as DH-style wipers).
Selection guide
To select the correct part, confirm the cylinder bore and rod diameter, the groove dimensions, the operating pressure and temperature, and the medium used. Check rod, housing, height and groove dimensions before ordering. Where a value is not stated above, confirm against drawing before ordering.
Request a quote
Send your part number, size list or drawing with quantity to DJF Seal for a quotation. We supply B2B, wholesale and OEM volumes with export packing.
