VB/VAY Skeleton Dust Seal for Excavator Pivot Pins
VB/VAY Skeleton Dust Seal overview
Protect your heavy machinery from harsh working environments with our high-performance VB and VAY type skeleton dust seals. Specifically engineered for excavator bucket pins, boom joints, and arm links, these seals serve as the ultimate barrier against mud, dust, water, and abrasive debris. By maintaining optimal lubrication and preventing contaminant ingress, our seals drastically reduce pin and bushing wear, preventing costly downtime.
Key parameters
| Parameter | Value |
|---|---|
| Material | NBR + Iron |
| Performance | Temperature: -35°C to 100°C; |
| Application | Excavators, loaders, and forklifts: boom/arm hinge pins, connecting rod pins, hydraulic cylinder clevis pins, and bucket pins |
Available sizes
149 size(s) recorded for this profile. Dimensions in millimetres unless noted otherwise.
| Inner Diameter | Outer Diameter | Height |
|---|---|---|
| 25 | 35 | 4 |
| 30 | 38 | 4 |
| 30 | 40 | 4 |
| 30 | 45 | 4 |
| 35 | 45 | 4 |
| 35 | 50 | 4 |
| 40 | 50 | 4 |
| 40 | 50 | 6 |
| 40 | 50 | 8 |
| 45 | 55 | 4 |
| 45 | 55 | 6 |
| 45 | 55 | 8 |
| 45 | 60 | 4 |
| 45 | 60 | 8 |
| 50 | 60 | 4 |
| 50 | 60 | 6 |
| 50 | 60 | 8 |
| 50 | 65 | 4 |
| 50 | 65 | 6 |
| 50 | 65 | 8 |
| 50 | 70 | 4 |
| 55 | 65 | 4 |
| 55 | 65 | 8 |
| 55 | 68 | 4 |
| 55 | 70 | 4 |
| 55 | 70 | 6 |
| 55 | 70 | 8 |
| 55 | 75 | 4 |
| 60 | 70 | 4 |
| 60 | 75 | 4 |
| 60 | 75 | 5 |
| 60 | 75 | 6 |
| 60 | 75 | 8 |
| 60 | 80 | 4 |
| 60 | 80 | 8 |
| 60 | 75 | 8 |
| 65 | 75 | 4 |
| 65 | 80 | 4 |
| 65 | 80 | 5 |
| 65 | 80 | 6 |
| 65 | 80 | 8 |
| 65 | 85 | 4 |
| 70 | 80 | 4 |
| 70 | 80 | 5 |
| 70 | 80 | 8 |
| 70 | 85 | 4 |
| 70 | 85 | 5 |
| 70 | 85 | 6 |
| 70 | 85 | 8 |
| 70 | 90 | 4 |
| 71 | 86 | 4 |
| 71 | 86 | 8 |
| 75 | 85 | 4 |
| 75 | 90 | 4 |
| 75 | 90 | 5 |
| 75 | 90 | 6 |
| 75 | 90 | 8 |
| 75 | 95 | 4 |
| 80 | 90 | 4 |
| 80 | 90 | 8 |
| 80 | 95 | 4 |
| 80 | 95 | 5 |
| 80 | 95 | 6 |
| 80 | 95 | 8 |
| 80 | 95 | 10 |
| 80 | 96 | 4 |
| 80 | 96 | 6 |
| 80 | 96 | 8 |
| 80 | 100 | 4 |
| 80 | 100 | 8 |
| 80 | 105 | 4 |
| 80 | 108 | 6 |
| 80 | 110 | 4 |
| 80 | 110 | 6 |
| 80 | 120 | 4 |
| 80 | 120 | 6 |
| 85 | 95 | 4 |
| 85 | 100 | 4 |
| 85 | 100 | 6 |
| 85 | 100 | 8 |
| 85 | 105 | 4 |
| 85 | 105 | 8 |
| 90 | 100 | 4 |
| 90 | 100 | 8 |
| 90 | 105 | 4 |
| 90 | 105 | 5 |
| 90 | 105 | 6 |
| 90 | 105 | 8 |
| 90 | 110 | 4 |
| 90 | 110 | 8 |
| 90 | 115 | 4 |
| 90 | 115 | 8 |
| 90 | 110 | 8 |
| 95 | 110 | 4 |
| 95 | 110 | 6 |
| 95 | 110 | 8 |
| 95 | 120 | 4 |
| 95 | 120 | 8 |
| 100 | 110 | 4 |
| 100 | 115 | 4 |
| 100 | 115 | 5 |
| 100 | 115 | 6 |
| 100 | 115 | 7 |
| 100 | 115 | 8 |
| 100 | 120 | 4 |
| 100 | 120 | 8 |
| 100 | 125 | 4 |
| 100 | 125 | 8 |
| 100 | 130 | 4 |
| 105 | 120 | 4 |
| 105 | 120 | 8 |
| 110 | 125 | 4 |
| 110 | 125 | 6 |
| 110 | 125 | 8 |
| 110 | 130 | 4 |
| 110 | 130 | 8 |
| 110 | 135 | 4 |
| 110 | 135 | 8 |
| 115 | 130 | 4 |
| 115 | 130 | 8 |
| 115 | 135 | 4 |
| 115 | 135 | 8 |
| 115 | 140 | 8 |
| 120 | 135 | 4 |
| 120 | 135 | 8 |
| 120 | 140 | 4 |
| 120 | 140 | 8 |
| 120 | 145 | 4 |
| 120 | 145 | 8 |
| 120 | 150 | 4 |
| 120 | 150 | 8 |
| 125 | 140 | 4 |
| 125 | 140 | 8 |
| 130 | 145 | 4 |
| 130 | 145 | 8 |
| 130 | 150 | 4 |
| 130 | 150 | 8 |
| 130 | 155 | 4 |
| 130 | 165 | 8 |
| 140 | 160 | 4 |
| 140 | 160 | 8 |
| 140 | 160 | 10 |
| 140 | 160 | 11 |
| 140 | 165 | 8 |
| 150 | 170 | 4 |
| 150 | 170 | 8 |
| 160 | 180 | 5 |
| 160 | 180 | 8 |
| 200 | 220 | 8 |
Selection guide

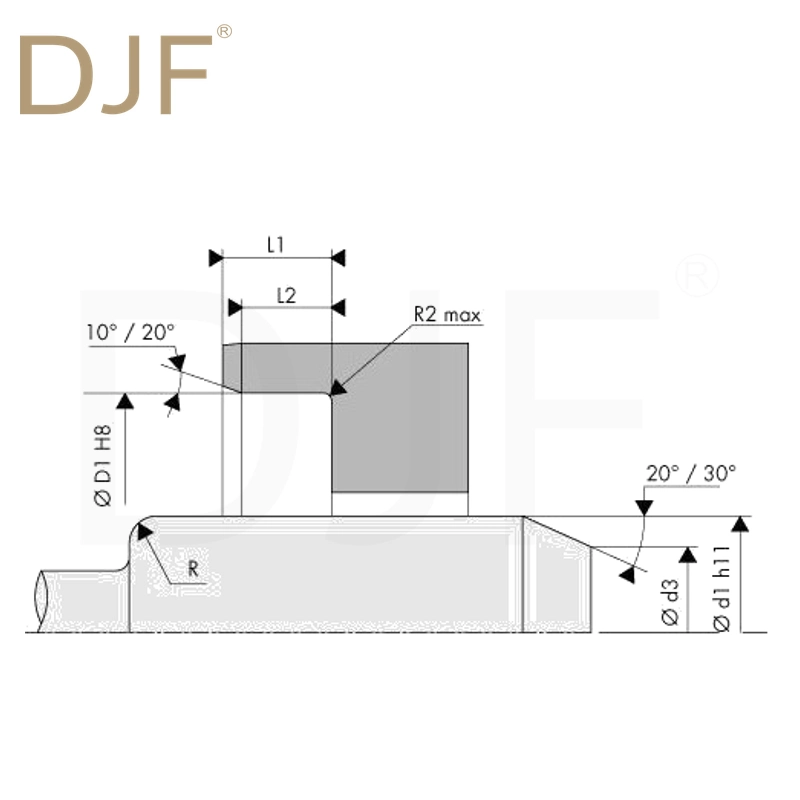

To select the correct part, confirm the cylinder bore and rod diameter, the groove dimensions, the operating pressure and temperature, and the medium used. Check rod, housing, height and groove dimensions before ordering. Where a value is not stated above, confirm against drawing before ordering.
Request a quote
Send your part number, size list or drawing with quantity to DJF Seal for a quotation. We supply B2B, wholesale and OEM volumes with export packing.
