TCN/TCZ/TCV Skeleton Oil Seals | Factory Wholesale

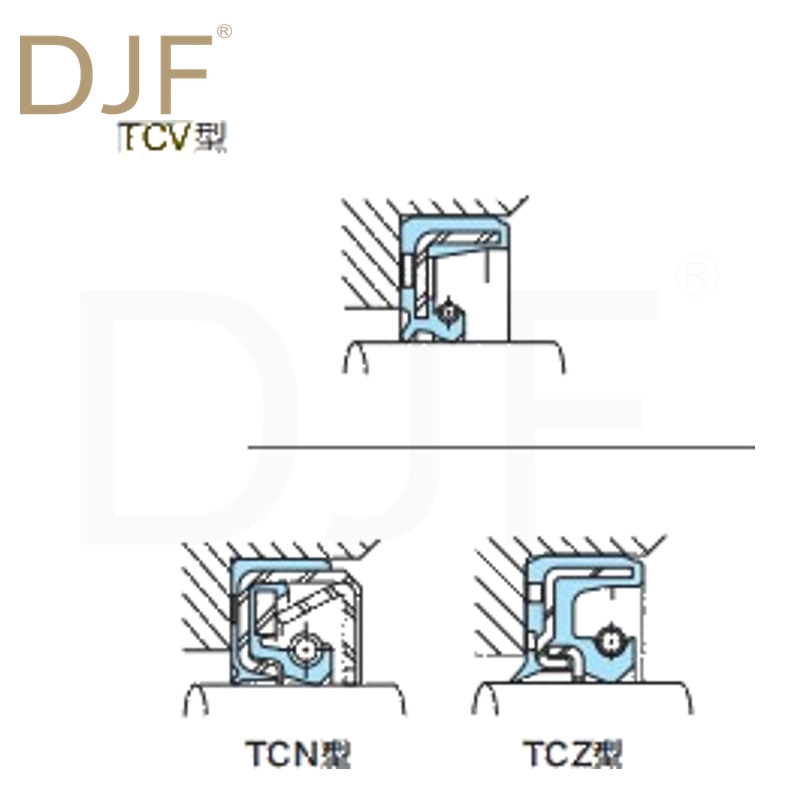

TCN/TCZ/TCV Skeleton Oil Seals overview
High-Pressure Skeleton Oil Seals Wholesale: TCN, TCZ, TCV Types. Premium NBR/FKM oil seals designed for hydraulic pumps & motors. Get a free bulk quote now!
Key parameters
| Parameter | Value |
|---|---|
| Material | NBR/FKM |
| Performance | NBR (Nitrile rubber): -30 to 120°C FKM (Fluororubber): -20 to 250°C Instantaneous pressure (impact pressure): 0.98 MPa {10 kgf/cm²} |
| Function | Designed as a pressure-resistant oil seal with an integrated casing to minimize deformation caused by pressure; suitable for use under high-pressure conditions. |
Available sizes
65 size(s) recorded for this profile. Dimensions in millimetres unless noted otherwise.
| Part Number | Inner Diameter | Outer Diameter | Height |
|---|---|---|---|
| AP1033 | 20 | 40 | 10 |
| AP1148 | 22 | 42 | 11 |
| AP1338 | 25 | 45 | 11 |
| AP1563 | 28 | 48 | 11 |
| AP1709 | 30 | 50 | 11 |
| AP1904 | 32 | 52 | 11 |
| AP1978 | 34 | 54 | 11 |
| AP2085 | 35 | 55 | 11 |
| AP2240 | 38 | 58 | 11 |
| AP2388E5 | 40 | 62 | 11 |
| AP2507H2 | 42 | 65 | 12 |
| AP2668G4 | 45 | 68 | 12 |
| AP2791G0 | 48 | 70 | 12 |
| AP286413 | 50 | 72 | 12 |
| AP3055F3 | 55 | 78 | 12 |
| AP3222B6 | 60 | 82 | 12 |
| AP3297G3 | 62 | 85 | 12 |
| AP3409F1 | 65 | 90 | 13 |
| AP3527B9 | 70 | 95 | 13 |
| AP3618G7 | 75 | 100 | 13 |
| AP3744K5 | 80 | 105 | 13 |
| AP3842H3 | 85 | 110 | 13 |
| AP3932B7 | 90 | 115 | 13 |
| AP3994B7 | 95 | 120 | 13 |
| AP4063B0 | 100 | 125 | 13 |
| AP4153HO | 105 | 135 | 14 |
| AP4212B0 | 110 | 140 | 14 |
| AP4282GO | 115 | 145 | 14 |
| AP4346B7 | 120 | 150 | 14 |
| AP2390 | 40 | 62 | 12 |
| AP2086 | 35 | 55 | 12 |
| AP2775 | 48 | 62 | 9 |
| AP4399E0 | 125 | 155 | 14 |
| AP4451G3 | 130 | 160 | 14 |
| AP4498G0 | 135 | 165 | 14 |
| AP4542FO | 140 | 170 | 14 |
| AP4624G0 | 150 | 180 | 14 |
| AP4795FO | 170 | 200 | 16 |
| AP4983E0 | 190 | 225 | 16 |
| AP3400 | 65 | 88 | 12 |
| AP2965 | 52 | 75 | 9 |
| AP1031 | 20 | 40 | 9 |
| AP1336 | 25 | 45 | 9 |
| AP1706 | 30 | 50 | 9 |
| AP2083 | 35 | 55 | 9 |
| AP2666 | 45 | 68 | 9 |
| AP2861 | 50 | 72 | 9 |
| AP3053 | 55 | 78 | 9 |
| AP3220 | 60 | 82 | 9 |
| AP4581 | 145 | 175 | 14 |
| AP2961 | 52 | 75 | 12 |
| AP4713G | 160 | 190 | 16 |
| AP3461 | 68 | 90 | 14 |
| AP2659 | 45 | 65 | 12 |
| AP4581 | 145 | 175 | 14 |
| BP0664 | 101.6 | 127 | 15.9 |
| BP4561 | 35 | 60 | 15 |
| BP2777 | 75 | 95 | 11 |
| BP3054 | 65 | 90 | 9 |
| BP3590 | 40 | 62 | 9 |
| AW2388 | 40 | 62 | 11 |
| AW2668 | 45 | 68 | 12 |
| AW3055 | 55 | 78 | 12 |
| AW3222 | 60 | 82 | 12 |
| XP0803 | 55 | 78 | 9.5 |
Selection guide
To select the correct part, confirm the cylinder bore and rod diameter, the groove dimensions, the operating pressure and temperature, and the medium used. Check rod, housing, height and groove dimensions before ordering. Where a value is not stated above, confirm against drawing before ordering.
Request a quote
Send your part number, size list or drawing with quantity to DJF Seal for a quotation. We supply B2B, wholesale and OEM volumes with export packing.
