VB / DLI Pivot Dust Seal | Wholesale

Name: VB / DLI Pivot Dust Seal | Wholesale
Brand: DJF Seal
SKU: DJF-21191
Availability: InStock
Author: DJF

Short Description:

VB / DLI Pivot Dust Seal overview Premium VB / DLI Pivot Dust Seals direct from DJF hydraulic seals manufacturer. We offer competitive wholesale pricing, reliable supply chain, and low...

Material: PU + Iron
Temperature: -40°C to 110°C

Send email to us

Product Detail

Product Tags

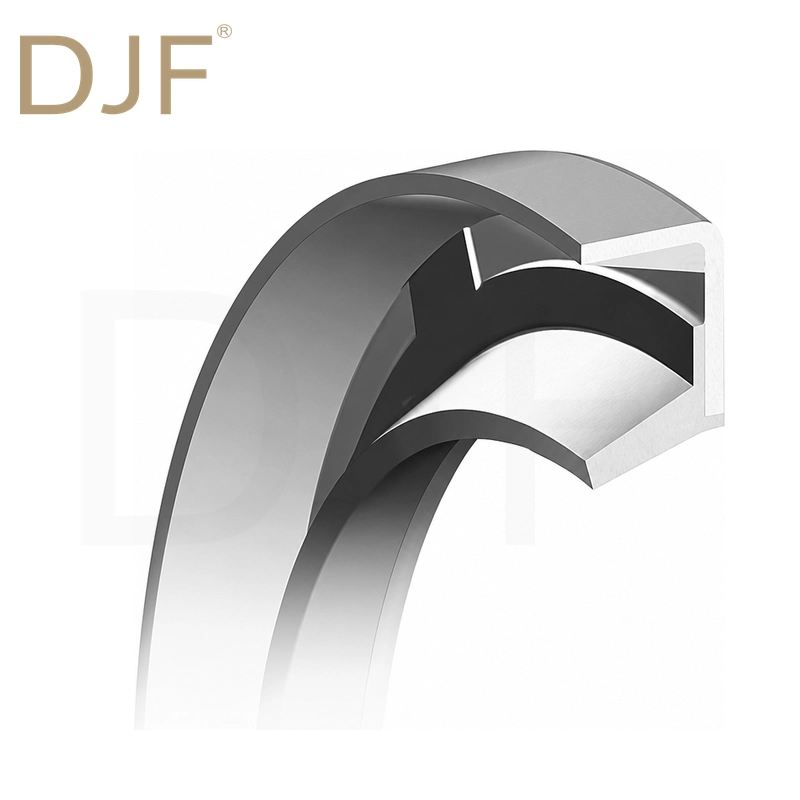

VB / DLI Pivot Dust Seal overview

Premium VB / DLI Pivot Dust Seals direct from DJF hydraulic seals manufacturer. We offer competitive wholesale pricing, reliable supply chain, and low MOQ for global distributors. Inquire today!

Key parameters

Parameter	Value
Material	PU + Iron
Performance	Temperature: -40°C to 110°C;

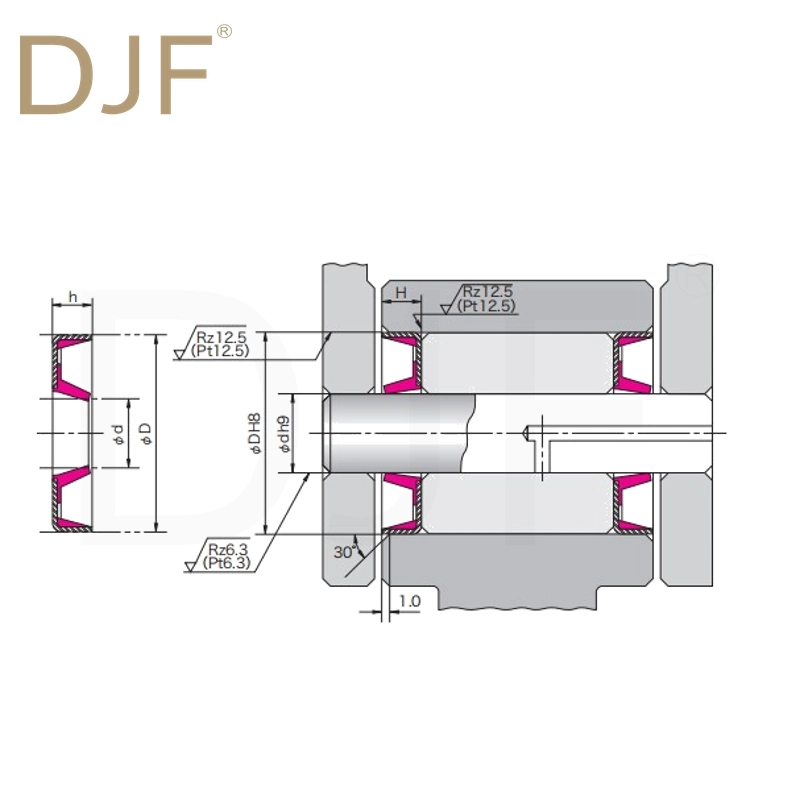

Function	Blocks soil, sand, gravel, dust, muddy water, and construction debris from entering the gap between the hinge pin and bushing, preventing impurities from damaging the pin and bushing, and eliminating scoring or seizing at the articulation point; also blocks fine dust.

Available sizes

589 size(s) recorded for this profile. Dimensions in millimetres unless noted otherwise.

Inner Diameter	Outer Diameter	Height
19	25.5	3.17
20	28	5
25.4	31.75	3.18
25	35	4
25	35	5
25	38.1	8
30	40	4
30	40	5
30	40	6
30	40	7
30	42	6
31.75	44.45	6.35
31.75	44.45	8
31.75	44.45	9.525
32	44	7
34.925	47.625	6.35
34.93	47.63	8
35	45	4
35	45	5
35	45	6
35	45	7
35	47	7
38	48	4
38	48	5
38	48	7
38.1	47.625	9.825
38.1	47.6	6.3
38	50	4
38.1	50.8	6.35
38.1	57.2	9.525
38.17	50.8	8
40	50	4
40	50	4.2
40	50	5
40	50	6
40	50	7
40	50	8
40	52	5
40	52	6
40	52	7
40	53	8
40	54	8
40	55	4
40	55	5
40	55	6
40	55	7
40	55	8
40	55	10
41.27	50.8	4.46
41.27	53.97	6.35
41.28	53.95	8
44	54	5
44.45	57.15	6.35
44.45	57.25	6.35
44.45	57.15	8
44.45	57.55	9.525
44.45	61.9	11
44.45	62.1	9.525
44.95	57.15	8
45	55	3.2
45	55	4
45	55	5
45	55	6
45	55	7
45	55	8
45	55	7.5
45	57	7
45	59	9
45	60	4
45	60	5
45	60	6
45	60	7.5
45	60	8
45	60	9
45	60	10
45	62	5
45	65	4
45	65	5
47.62	61.9	9.5
47.63	60.33	8
47.625	63.5	9.525
48	58	5
50	60	4
50	60	4.5
50	60	5
50	60	6
50	60	7
50	60	8
50	62	7
50	63	4
50	63	6
50	63	8
50	63.5	6
50	63.5	9
50	64	7
50	64	8
50	65	4
50	65	5
50	65	6
50	65	7
50	65	7.5
50	65	8
50	65	9
50	70	4
50	70	8
50	72	8
50	75	4
50	80	5
50	80	8
50.8	60.325	4.76
50.8	60.535	9.525
50.8	63.5	6.35
50.8	63.5	8
50.8	65	11
50.8	68.5	9.525
50.8	69.85	9.525
50.8	85.825	7.937
50	68	11
50	69	11
52	70	8
53.98	66.68	7.94
53.97	73.02	9.525
55	65	3
55	65	4
55	65	5
55	65	6
55	65	8
55	68	4
55	68	5
55	68	6
55	68	7
55	68	8
55	68	10
55	69	8
55	69	11
55	70	4
55	70	5
55	70	6
55	70	7
55	70	7.5
55	70	8
55	73	11
55	74	11
55	75	4
56	70	7.5
57	75	9.525
57	76	9.525
57.15	68.85	7.9
57.15	69.85	6.35
57.15	69.85	8
57.15	69.95	6.35
57.15	76.2	7.9
57.15	76.2	9.525
57.15	76	11
57.5	69.95	6.35
60	70	4
60	70	5
60	70	6
60	70	7
60	70	8
60	72	8
60	73	4
60	73	6
60	73	8
60.3	73.025	6.3
60.3	73.025	7.9
60	74	8
60	75	4
60	75	5
60	75	6
60	75	7
60	75	7.5
60	75	8
60	78	7
60	78	8
60	80	4
60	80	8
60	85	5
60	85	8
60	80	12
63	75	7
63	76	8
63	77	8
63	78	6
63	78	7.5
63	78	8
63	78	9
63	80	10
63	83	10
63.5	76.2	4.76
63.5	76.2	6.35
63.5	76.2	7.94
63.5	76.2	8
63.5	76.25	10.49
63.5	82.7	9.525
63.5	85.55	9.52
65	75	4
65	75	5
65	75	6
65	75	7
65	75	8
65	79	8
65	80	4
65	80	5
65	80	6
65	80	7
65	80	8
65	80	10
65	80	12
65	85	4
65	85	5
65	85	8
65	85	10
66.68	79.38	6.35
66.8	85.23	8
68.85	82.55	7.9
69.5	95.5	12.7
69.85	82.55	7.94
69.85	82.55	8
69.85	82.55	9.525
69.85	95.5	12.7
70	80	4
70	80	5
70	80	6
70	80	7
70	80	8
70	83	6
70	83	7
70	83	8
70	84	4
70	84	8
70	85	4
70	85	5
70	85	6
70	85	7
70	85	7.5
70	85	8
70	85	9
70	90	4
70	90	5
70	90	6
70	90	7
70	90	8
70	90	10
70	90	12
70	90	14
70	95	8
71	85	4
71	85	5
71	86	4
71	86	5
71	86	6
71	86	8
75	85	4
75	85	5
75	85	6
75	85	7
75	85	7.5
75	85	8
75	88	9
75	89	8
75	90	4
75	90	5
75	90	6
75	90	7
75	90	7.5
75	90	8
75	95.5	8
75	90	10
75	95	12
76	95.2	7.9
76.2	88.9	6.35
76.2	88.9	7.94
76.2	95.2	7.9
76.2	95.25	9.52
76.2	102	12.7
80	90	4
80	90	4.5
80	90	5
80	90	6
80	90	7
80	90	8
80	92	7
80	93	6
80	93	7
80	93	8
80	94	4
80	94	8
80	95	4
80	95	5
80	95	6
80	95	7
80	95	8
80	95	9
80	95	10
80	96	8
80	100	4
80	100	5
80	100	6
80	100	7
80	100	8
80	100	10
80	105	8
80	110	4
80	110	8
82.55	95.25	7.95
82.55	95.38	7.92
82.5	98.6	8
82.5	108	8
83.5	108.2	12.7
85	95	5
85	95	7
85	95	8
85	97	7
85	99	8
85	100	4
85	100	5
85	100	5.5
85	100	6
85	100	7
85	100	8
85	105	8
88	101.5	8
88.9	101.6	6.35
88.9	101.6	7.94
88.9	104.78	7.94
88.9	105.13	6.3
88.9	105.13	8
88.9	107.95	12.7
88.9	108.1	7.92
88.9	114.3	12.7
90	100	4.5
90	100	5
90	100	6
90	100	7
90	100	8
90	104	8
90	105	4
90	105	5
90	105	6
90	105	7
90	105	8
90	105	10
90	105	11
90	105	12
90	106	5
90	106	6
90	106	8
90	110	4
90	110	5
90	110	6
90	110	7
90	110	8
90	110	9.5
90	110	10
90	110	12
90	115	6
90	115	8
90	115	10
90	120	6
90	120	8
90	125	8
90	130	7
91.5	104.25	8
91.5	130.5	9
95	107	9
95	109	8
95	110	4
95	110	6
95	110	7
95	110	8
92.25	111.28	7.92
95.25	114.43	7.92
95.25	114.3	12.7
95	115	7
95	115	8
95	115	10
95	120	12
97.1	120	12.7
100	110	4
100	110	5
100	110	7
100	110	8
100	112	8
100	114	8
100	115	4
100	115	5
100	115	6
100	115	7
100	115	8
100	115	9
100	116	5
100	116	6
100	116	8
100	117.5	8
100	120	4
100	120	7
100	120	8
100	120	10
100	125	4
100	125	6
100	125	8
100	125	10
100	130	8
100	140	8
100	140	12
100	140	13
101.6	117.63	7.92
101.6	120.65	7.9
101.6	120	12.7
101.6	127	12.7
105	120	4
105	120	5
105	120	6
105	120	7
105	120	8
105	120	10
105	121	9
105	125	7
105	125	10
107.9	120.8	8
107.95	120.7	9.2
110	120	4
110	120	6
110	120	7
110	120	8
110	125	4
110	125	5
110	125	5.5
110	125	6
110	125	7
110	125	8
110	125	9
110	125	10
110	126	8
110	126	9
110	130	5
110	130	6
110	130	7
110	130	8
110	130	9
110	130	10
110	135	5
110	135	6
110	135	8
110	135	9
110	135	10
110	140	8
110	140	10
112	125	9
114.3	130.1	7.9
114.3	133.5	7.92
115	125	6
115	130	4
115	130	7
115	130	8
115	130	9
115	130	10
115	130	11
115	131	9
115	135	6
115	135	8
115	135	10
115	138	8
116.8	140.2	8
120	130	6
120	130	7
120	130	8
120	135	4
120	135	5
120	135	6
120	135	7
120	135	8
120	136	8
120	136	9
120	140	6
120	140	7
120	140	8
120	140	10
120	145	8
120	150	8
120	150	10
120	150	12
120	155	8
120.65	136.525	7.938
121.7	146.3	12.7
125	135	8
125	140	4
125	140	7
125	140	8
125	140	10
125	145	8
125	145	10
125	148	8
127	146.05	7.94
127	146.2	7.92
127	146.3	12.7
127	152.4	7.9
129.85	154	8
130	140	7
130	145	4
130	145	6
130	145	7
130	145	7.5
130	145	8
130	145	10
130	150	4
130	150	6
130	150	7
130	150	8
130	150	9
130	150	10
130	154	6
130	154	7
130	154	8
130	155	8
130	155	10
130	160	6
130	160	8
130	160	10
130	160	12
135	145	8
135	150	8
135	150	9
135	150	12.7
136	150	9
139.7	158.75	7.9
140	155	7
140	155	8
140	160	8
140	160	9.5
140	160	10
140	164	8
140	165	8
140	170	8
140	170	12
145	160	8
145	165	7.5
150	160	6
150	160	7
150	165	7
150	165	8
150	170	8
150	170	10
150	175	8
150	175	10
150	180	8
150	180	10
150	180	12
160	175	7
160	175	8
160	175	10
160	180	7.5
160	180	8
160	180	10
160	185	5
160	185	10
160	185	12
160	190	8
160	190	10
160	190	12
160	190	13
165.1	184.15	7.9
170	190	8
170	190	10
170	200	10
170	200	13
180	200	8
180	200	10
180	204	8
180	205	12
180	210	8
180	210	10
180	210	13
180	210	15
190	210	8
200	220	8
200	220	10
200	225	12
200	230	10
200	230	12
200	230	13
200	235	15
202	230.8	8
210	235	12
220	255	15
230	260	10
240	275	15
279.32	305.21	15

Selection guide

To select the correct part, confirm the cylinder bore and rod diameter, the groove dimensions, the operating pressure and temperature, and the medium used. Check rod, housing, height and groove dimensions before ordering. Where a value is not stated above, confirm against drawing before ordering.
