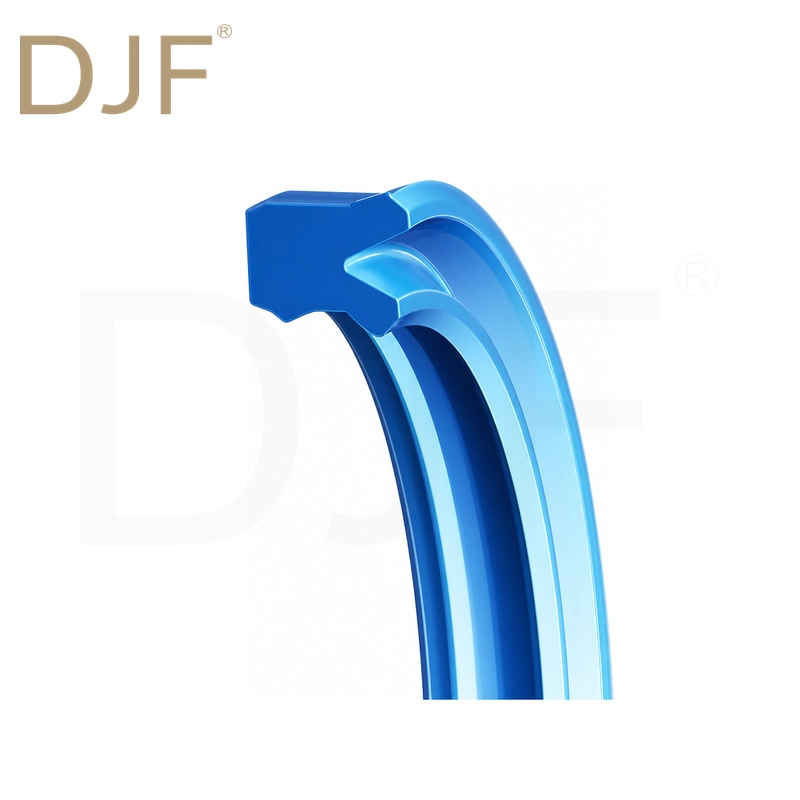

H605 Rod Seal overview
Source wholesale H605 PU hydraulic rod seals directly from DJF. High quality, full standard sizes, custom solutions. DJF is a direct hydraulic seal manufacturer and wholesale supplier, serving repair workshops, equipment dealers and OEM buyers worldwide. Request a free catalog now!
Key parameters
| Parameter | Value |
|---|---|
| Material | Polyurethane |
| Performance | Temperature range: -45 to +110°C, Speed: ≤1 m/s, Working pressure: 160 bar; |
| Function | Provides reliable sealing performance and ease of installation; |

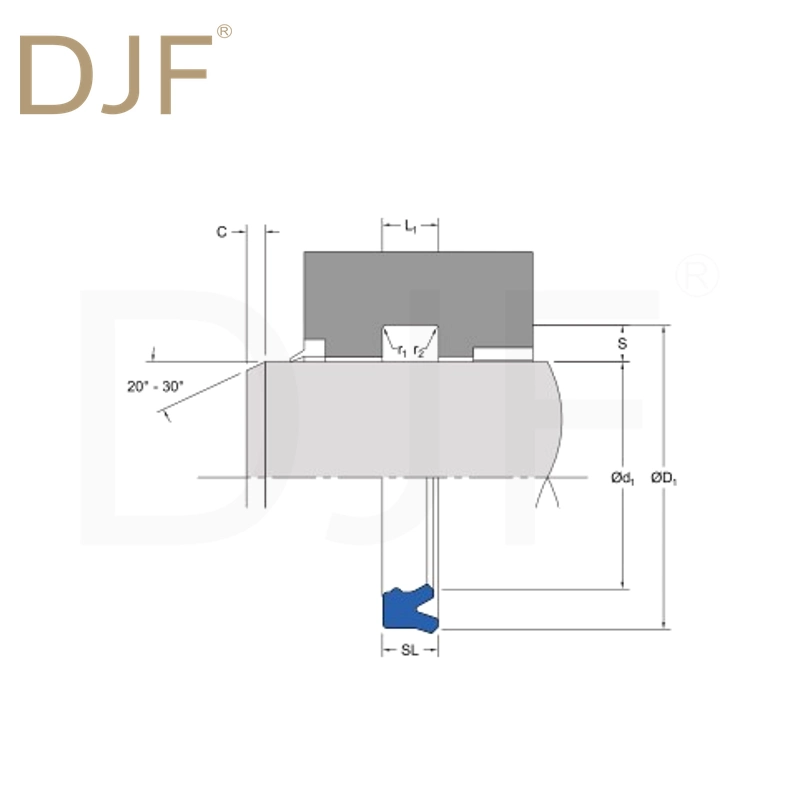

Available sizes
568 size(s) recorded for this profile. Dimensions in millimetres unless noted otherwise.
| Part Number | Inner Diameter (ID) | Outer Diameter (OD) | Height (H) | Slot Width (L) |
|---|---|---|---|---|
| H605-4790600 | 6 | 15 | 7.3 | 8 |
| H605-4580600 | 6 | 16 | 7 | 8 |
| H605-4580500 | 8 | 18 | 7 | 8 |
| H605-4544300 | 9.53 | 15.88 | 5.03 | 5.54 |
| H605-4710500 | 9.53 | 19.05 | 7.92 | 8.74 |
| H605-4402300 | 10 | 15 | 3.6 | 4 |
| H605-4578000 | 12 | 18 | 4 | 4.5 |
| H605-4314900 | 12 | 18 | 5.7 | 6.3 |
| H605-4341600 | 12 | 19 | 4.5 | 5 |
| H605-4710000 | 12 | 19 | 5.1 | 5.6 |
| H605-4310900 | 12 | 20 | 5.7 | 6.3 |
| H605-4857200 | 12 | 22 | 7.3 | 8 |
| H605-4315000 | 12 | 22 | 7.7 | 9 |
| H605-4370400 | 12.7 | 18 | 5.5 | 6 |
| H605-4576100 | 12.7 | 19.05 | 4.75 | 5.26 |
| H605-4351600 | 13 | 20 | 4.5 | 5 |
| H605-4710100 | 14 | 21 | 5.1 | 5.6 |
| H605-4311000 | 14 | 22 | 5.7 | 6.3 |
| H605-4310000 | 14 | 24 | 7.3 | 8 |
| H605-4576200 | 14.27 | 20.65 | 4.75 | 5.26 |
| H605-4762200 | 15 | 22 | 5.7 | 6.3 |
| H605-4333800 | 15.37 | 25.5 | 6.35 | 7.4 |
| H605-4493700 | 15.88 | 22.23 | 4.75 | 5.26 |
| H605-4329000 | 15.88 | 22.23 | 6.12 | 6.73 |
| H605-4447200 | 15.88 | 25.4 | 7.14 | 7.92 |
| H605-4341700 | 16 | 22 | 4.5 | 5 |
| H605-4314100 | 16 | 22 | 5 | 6 |
| H605-4295200 | 16 | 24 | 5.8 | 6.3 |
| H605-4311100 | 16 | 26 | 7.7 | 9 |
| H605-4572000 | 17.48 | 23.83 | 4.75 | 5.26 |
| H605-4712000 | 18 | 24 | 4.5 | 5 |
| H605-4314200 | 18 | 25 | 5 | 6 |
| H605-4611000 | 18 | 26 | 5 | 5.7 |
| H605-4311200 | 18 | 26 | 5.7 | 6.3 |
| H605-4333900 | 18 | 26 | 6 | 7 |
| H605-4863000 | 18 | 26 | 8.2 | 9 |
| H605-4305100 | 18 | 28 | 7.7 | 9 |
| H605-4552900 | 19.05 | 25.4 | 3.18 | 3.51 |
| H605-4571000 | 19.05 | 25.4 | 4.75 | 5.26 |
| H605-4345100 | 19.05 | 25.4 | 6.35 | 6.99 |
| H605-4512200 | 19.05 | 28.58 | 7.92 | 8.74 |
| H605-4332100 | 20 | 25 | 3.2 | 3.5 |
| H605-4315100 | 20 | 26 | 5 | 5.5 |
| H605-4826000 | 20 | 26 | 6.5 | 7.6 |
| H605-4702900 | 20 | 27 | 6.1 | 6.7 |
| H605-4611100 | 20 | 28 | 5 | 5.7 |
| H605-4362100 | 20 | 28 | 5.7 | 6.3 |
| H605-4626000 | 20 | 28 | 6.3 | 7 |
| H605-4611200 | 20 | 30 | 6 | 7 |
| H605-4857300 | 20 | 30 | 7.3 | 8 |
| H605-4305200 | 20 | 30 | 7.7 | 9 |
| H605-4310300 | 20 | 30 | 10 | 11 |
| H605-4576300 | 20.65 | 27 | 4.75 | 5.26 |
| H605-4558700 | 20.65 | 27 | 6.35 | 6.99 |
| H605-4896100 | 22 | 27.5 | 4.5 | 5 |
| H605-4617500 | 22 | 30 | 5 | 5.7 |
| H605-4305300 | 22 | 30 | 5.7 | 6.3 |
| H605-4626100 | 22 | 30 | 6.3 | 7 |
| H605-4356800 | 22 | 30 | 7.3 | 8 |
| H605-4310800 | 22 | 32 | 7.3 | 8 |
| H605-4863300 | 22 | 32 | 8.2 | 9 |
| H605-4311300 | 22 | 32 | 10 | 11 |
| H605-4576400 | 22.23 | 28.58 | 4.75 | 5.26 |
| H605-4442500 | 22.23 | 28.58 | 6.35 | 6.99 |
| H605-4794500 | 22.23 | 31.75 | 8.23 | 9.04 |
| H605-4373100 | 22.23 | 34.93 | 8.66 | 9.53 |
| H605-4611300 | 22.4 | 30 | 5 | 5.7 |
| H605-4616600 | 22.4 | 32.4 | 8 | 9 |
| H605-4773500 | 24 | 30 | 4.5 | 5 |
| H605-4610100 | 25 | 33 | 5 | 5.7 |
| H605-4305400 | 25 | 33 | 5.7 | 6.3 |
| H605-4333500 | 25 | 33 | 6.8 | 7.5 |
| H605-4807800 | 25 | 33 | 8 | 9 |
| H605-4315200 | 25 | 33 | 10 | 11 |
| H605-4512000 | 25 | 35 | 7.3 | 8 |
| H605-4311400 | 25 | 35 | 7.7 | 9 |
| H605-4310500 | 25 | 35 | 10 | 11 |
| H605-4379900 | 25 | 37 | 10 | 11 |
| H605-4322900 | 25 | 40 | 10 | 11 |
| H605-4371800 | 25.4 | 31.5 | 4.88 | 5.36 |
| H605-4442600 | 25.4 | 31.75 | 4.75 | 5.26 |
| H605-4345200 | 25.4 | 31.75 | 6.35 | 6.99 |
| H605-4493800 | 25.4 | 33.32 | 5.56 | 6.12 |
| H605-4801700 | 25.4 | 34.93 | 4.75 | 5.26 |
| H605-4456800 | 25.4 | 34.93 | 6.35 | 6.99 |
| H605-4345900 | 25.4 | 34.93 | 7.92 | 8.74 |
| H605-4430200 | 25.4 | 38.1 | 6.48 | 6.99 |
| H605-4330100 | 25.4 | 38.1 | 8.66 | 9.53 |
| H605-4308400 | 25.4 | 38.1 | 9.53 | 10.49 |
| H605-4459400 | 26 | 36 | 7 | 8 |
| H605-4410300 | 27 | 33.07 | 4.75 | 5.26 |
| H605-4394500 | 27 | 33.35 | 6.35 | 6.99 |
| H605-4611400 | 28 | 35.5 | 5 | 5.7 |
| H605-4703000 | 28 | 36 | 5.7 | 6.3 |
| H605-4626200 | 28 | 36 | 6.3 | 7 |
| H605-4305500 | 28 | 38 | 7.3 | 8 |
| H605-4399000 | 28 | 43 | 11.4 | 12.5 |
| H605-4384500 | 28.58 | 34.67 | 4.88 | 5.36 |
| H605-4442700 | 28.58 | 34.93 | 4.75 | 5.26 |
| H605-4388000 | 28.58 | 34.93 | 6.35 | 6.99 |
| H605-4371900 | 28.58 | 35.53 | 4.88 | 5.36 |
| H605-4392600 | 28.58 | 38.1 | 7.92 | 8.74 |
| H605-4568800 | 28.58 | 39.67 | 8.26 | 9.14 |
| H605-4370900 | 28.58 | 41.28 | 6.35 | 6.99 |
| H605-4373000 | 28.58 | 44.45 | 10.08 | 11.1 |
| H605-4704500 | 30 | 38 | 5.7 | 6.3 |
| H605-4402700 | 30 | 38 | 6.3 | 7 |
| H605-4610200 | 30 | 40 | 6 | 7 |
| H605-4703100 | 30 | 40 | 7 | 7.7 |
| H605-4857400 | 30 | 40 | 7.3 | 8 |
| H605-4826100 | 30 | 40 | 8.5 | 9.5 |
| H605-4304600 | 30 | 40 | 10 | 11 |
| H605-4383100 | 30 | 42 | 10.9 | 12 |
| H605-4625700 | 30 | 43 | 10 | 11 |
| H605-4618900 | 30 | 45 | 9 | 10 |
| H605-4857500 | 30 | 45 | 10 | 11 |
| H605-4328500 | 30 | 50 | 10 | 11 |
| H605-4458600 | 30.15 | 39.67 | 6.35 | 6.99 |
| H605-4359600 | 31.75 | 38.1 | 4.75 | 5.26 |
| H605-4345300 | 31.75 | 38.1 | 6.35 | 6.99 |
| H605-4552600 | 31.75 | 41.28 | 4.75 | 5.26 |
| H605-4330200 | 31.75 | 41.28 | 5.77 | 6.35 |
| H605-4460600 | 31.75 | 41.28 | 6.35 | 6.99 |
| H605-4346000 | 31.75 | 41.28 | 7.92 | 8.74 |
| H605-4513500 | 31.75 | 44.45 | 6.35 | 6.99 |
| H605-4335800 | 31.75 | 44.45 | 9.53 | 10.49 |
| H605-4330300 | 31.75 | 47.63 | 10.08 | 11.1 |
| H605-4310700 | 32 | 40 | 6 | 7 |
| H605-4334000 | 32 | 40 | 6.7 | 7.7 |
| H605-4315300 | 32 | 40 | 7.7 | 9 |
| H605-4334100 | 32 | 41.5 | 7.9 | 8.9 |
| H605-4360100 | 32 | 42 | 5.7 | 6.3 |
| H605-4616100 | 32 | 42 | 6 | 7 |
| H605-4374200 | 32 | 42 | 7.3 | 8 |
| H605-4305600 | 32 | 42 | 10 | 11 |
| H605-4597700 | 32 | 45 | 10 | 11 |
| H605-4329600 | 32 | 47 | 9.1 | 10 |
| H605-4338900 | 32 | 47 | 10 | 11 |
| H605-4492500 | 32 | 48 | 10 | 11 |
| H605-4392200 | 34.93 | 41.28 | 4.75 | 5.26 |
| H605-4345400 | 34.93 | 41.28 | 6.35 | 6.99 |
| H605-4493900 | 34.93 | 42.85 | 5.56 | 6.12 |
| H605-4552800 | 34.93 | 44.45 | 4.75 | 5.26 |
| H605-4346100 | 34.93 | 44.45 | 7.92 | 8.74 |
| H605-4403100 | 34.93 | 47.63 | 9.53 | 10.49 |
| H605-4330400 | 34.93 | 50.8 | 10.08 | 11.1 |
| H605-4703200 | 35 | 43 | 5.7 | 6.3 |
| H605-4402800 | 35 | 43 | 6.3 | 7 |
| H605-4309000 | 35 | 43 | 8.2 | 9 |
| H605-4611500 | 35 | 45 | 6 | 7 |
| H605-4619200 | 35 | 45 | 7 | 8 |
| H605-4314300 | 35 | 45 | 7.7 | 9 |
| H605-4305700 | 35 | 45 | 10 | 11 |
| H605-4611600 | 35 | 50 | 9 | 10 |
| H605-4322500 | 35 | 50 | 10 | 11 |
| H605-4616700 | 35.5 | 45 | 6 | 7 |
| H605-4616900 | 35.5 | 50.5 | 10 | 11 |
| H605-4373900 | 36 | 44 | 6.4 | 7.5 |
| H605-4395000 | 36 | 44 | 8.2 | 9 |
| H605-4372100 | 36 | 46 | 5.7 | 6.3 |
| H605-4304900 | 36 | 46 | 7.3 | 8 |
| H605-4305000 | 36 | 46 | 10 | 11 |
| H605-4771600 | 36 | 51 | 10 | 11 |
| H605-4442800 | 36.5 | 46.02 | 7.92 | 8.74 |
| H605-4862900 | 37 | 47 | 10 | 11 |
| H605-4619100 | 38 | 48 | 8 | 9 |
| H605-4515500 | 38 | 48 | 10 | 11 |
| H605-4586300 | 38 | 50 | 10 | 11 |
| H605-4480900 | 38 | 53 | 10 | 11 |
| H605-4345500 | 38.1 | 44.45 | 6.35 | 6.99 |
| H605-4576600 | 38.1 | 47.63 | 4.75 | 5.26 |
| H605-4322100 | 38.1 | 47.63 | 6.35 | 6.99 |
| H605-4346200 | 38.1 | 47.63 | 7.92 | 8.74 |
| H605-4385400 | 38.1 | 47.63 | 9.53 | 10.49 |
| H605-4394400 | 38.1 | 50.8 | 6.35 | 6.99 |
| H605-4330500 | 38.1 | 50.8 | 8.66 | 9.53 |
| H605-4322200 | 38.1 | 50.8 | 9.53 | 10.49 |
| H605-4442900 | 38.1 | 53.98 | 9.53 | 10.49 |
| H605-4330600 | 38.1 | 53.98 | 10.08 | 11.1 |
| H605-4703300 | 40 | 48 | 5.7 | 6.3 |
| H605-4396800 | 40 | 48 | 8.2 | 9 |
| H605-4334200 | 40 | 49.52 | 9.5 | 10.5 |
| H605-4610300 | 40 | 50 | 6 | 7 |
| H605-4311600 | 40 | 50 | 7.3 | 8 |
| H605-4866800 | 40 | 50 | 9 | 10 |
| H605-4293800 | 40 | 50 | 10 | 11 |
| H605-4381800 | 40 | 52 | 10.9 | 12 |
| H605-4703400 | 40 | 55 | 7.3 | 8 |
| H605-4611700 | 40 | 55 | 9 | 10 |
| H605-4328300 | 40 | 55 | 10 | 11 |
| H605-4857600 | 40 | 55 | 11.4 | 12.5 |
| H605-4345600 | 41.28 | 47.63 | 6.35 | 6.99 |
| H605-4542800 | 41.28 | 50.8 | 7.14 | 7.92 |
| H605-4443000 | 41.28 | 50.8 | 7.92 | 8.74 |
| H605-4443100 | 41.28 | 50.8 | 9.53 | 10.49 |
| H605-4512100 | 41.28 | 53.98 | 9.53 | 10.49 |
| H605-4744400 | 42 | 50 | 5.7 | 6.3 |
| H605-4373800 | 42 | 50 | 7.5 | 8 |
| H605-4618100 | 42 | 52 | 6 | 7 |
| H605-4338200 | 42 | 52 | 10 | 11 |
| H605-4619700 | 43 | 53 | 6 | 7 |
| H605-4345700 | 44.45 | 50.8 | 6.35 | 6.99 |
| H605-4357200 | 44.45 | 53.98 | 6.35 | 6.99 |
| H605-4346300 | 44.45 | 53.98 | 7.92 | 8.74 |
| H605-4366800 | 44.45 | 53.98 | 9.53 | 10.49 |
| H605-4552700 | 44.45 | 57.15 | 6.35 | 6.99 |
| H605-4330700 | 44.45 | 57.15 | 8.66 | 9.53 |
| H605-4337000 | 44.45 | 57.15 | 9.53 | 10.49 |
| H605-4376800 | 44.45 | 57.15 | 12.7 | 13.97 |
| H605-4443200 | 44.45 | 60.33 | 11.1 | 12.22 |
| H605-4619800 | 45 | 53 | 7.3 | 8 |
| H605-4402900 | 45 | 53 | 8.1 | 9 |
| H605-4315600 | 45 | 53 | 11.8 | 13 |
| H605-4479700 | 45 | 55 | 5.6 | 6.3 |
| H605-4610400 | 45 | 55 | 6 | 7 |
| H605-4305900 | 45 | 55 | 7.3 | 8 |
| H605-4845700 | 45 | 55 | 8 | 9 |
| H605-4302600 | 45 | 55 | 10 | 11 |
| H605-4322800 | 45 | 57.7 | 9.5 | 10.5 |
| H605-4315400 | 45 | 60 | 10 | 11 |
| H605-4619900 | 45 | 60 | 11.4 | 12.5 |
| H605-4315500 | 45 | 65 | 10 | 11 |
| H605-4778000 | 47 | 56.33 | 9 | 10 |
| H605-4834600 | 47.63 | 57.15 | 7.92 | 8.74 |
| H605-4476200 | 47.63 | 57.15 | 9.53 | 10.49 |
| H605-4391200 | 47.63 | 60.33 | 9.53 | 10.49 |
| H605-4331500 | 47.63 | 63.5 | 10.08 | 11.1 |
| H605-4629800 | 48 | 56 | 11.4 | 12.5 |
| H605-4432600 | 48 | 60 | 10 | 11 |
| H605-4538600 | 50 | 57 | 9 | 10 |
| H605-4611800 | 50 | 60 | 6 | 7 |
| H605-4306000 | 50 | 60 | 7.3 | 8 |
| H605-4845800 | 50 | 60 | 8.2 | 9 |
| H605-4304500 | 50 | 60 | 10 | 11 |
| H605-4314400 | 50 | 60 | 11.8 | 13 |
| H605-4334400 | 50 | 62.7 | 9.5 | 10.5 |
| H605-4804400 | 50 | 63 | 10 | 11 |
| H605-4611900 | 50 | 65 | 9 | 10 |
| H605-4344000 | 50 | 65 | 9.5 | 10.5 |
| H605-4617000 | 50 | 65 | 10 | 11 |
| H605-4291700 | 50 | 65 | 10.9 | 12 |
| H605-4625400 | 50 | 65 | 11.4 | 12.5 |
| H605-4381900 | 50 | 65 | 14.5 | 16 |
| H605-4612000 | 50 | 70 | 12 | 13 |
| H605-4345800 | 50.8 | 57.15 | 6.35 | 6.99 |
| H605-4458700 | 50.8 | 60.33 | 6.35 | 6.99 |
| H605-4346400 | 50.8 | 60.33 | 7.92 | 8.74 |
| H605-4380100 | 50.8 | 60.33 | 9.53 | 10.49 |
| H605-4496900 | 50.8 | 63.5 | 6.35 | 6.99 |
| H605-4382900 | 50.8 | 63.5 | 7.92 | 8.74 |
| H605-4330900 | 50.8 | 63.5 | 8.66 | 9.53 |
| H605-4337100 | 50.8 | 63.5 | 9.53 | 10.49 |
| H605-4491400 | 50.8 | 63.5 | 19.84 | 21.82 |
| H605-4333100 | 50.8 | 66.68 | 7.92 | 8.74 |
| H605-4331000 | 50.8 | 66.68 | 10.08 | 11.1 |
| H605-4346500 | 50.8 | 66.68 | 12.7 | 13.97 |
| H605-4347300 | 50.8 | 69.85 | 15.88 | 17.48 |
| H605-4617700 | 53 | 63 | 6 | 7 |
| H605-4371700 | 53 | 65 | 9 | 10 |
| H605-4443300 | 53.98 | 63.5 | 9.53 | 10.49 |
| H605-4863400 | 55 | 63 | 8.2 | 9 |
| H605-4615600 | 55 | 65 | 6 | 7 |
| H605-4703500 | 55 | 65 | 7.3 | 8 |
| H605-4360400 | 55 | 65 | 8.2 | 9 |
| H605-4306100 | 55 | 65 | 10 | 11 |
| H605-4323400 | 55 | 65 | 11.8 | 13 |
| H605-4593800 | 55 | 68 | 10 | 11 |
| H605-4612100 | 55 | 70 | 9 | 10 |
| H605-4319200 | 55 | 70 | 11.8 | 13 |
| H605-4625000 | 55 | 71 | 12 | 13 |
| H605-4612200 | 55 | 75 | 12 | 13 |
| H605-4311800 | 56 | 66 | 10 | 11 |
| H605-4311900 | 56 | 71 | 10 | 11 |
| H605-4306200 | 56 | 71 | 11.4 | 12.5 |
| H605-4372200 | 57.15 | 66.68 | 8.51 | 9.53 |
| H605-4331100 | 57.15 | 69.85 | 8.66 | 9.53 |
| H605-4337200 | 57.15 | 69.85 | 9.53 | 10.49 |
| H605-4750200 | 57.15 | 73.03 | 12.7 | 13.97 |
| H605-4331200 | 57.15 | 76.2 | 12.98 | 14.27 |
| H605-4538000 | 60 | 68 | 11.4 | 12.5 |
| H605-4610500 | 60 | 70 | 6 | 7 |
| H605-4703600 | 60 | 70 | 7.3 | 8 |
| H605-4310600 | 60 | 70 | 10 | 11 |
| H605-4306300 | 60 | 70 | 11.8 | 13 |
| H605-4615700 | 60 | 71 | 7 | 8 |
| H605-4323500 | 60 | 72 | 10 | 11 |
| H605-4593900 | 60 | 73 | 10 | 11 |
| H605-4612300 | 60 | 75 | 9 | 10 |
| H605-4378700 | 60 | 75 | 10 | 11 |
| H605-4857700 | 60 | 75 | 11.4 | 12.5 |
| H605-4306400 | 60 | 75 | 11.8 | 13 |
| H605-4391800 | 60 | 75 | 20.5 | 22.5 |
| H605-4625100 | 60 | 76 | 10 | 11 |
| H605-4514300 | 60 | 80 | 11.4 | 12.5 |
| H605-4612400 | 60 | 80 | 12 | 13 |
| H605-4443400 | 60.33 | 69.85 | 9.53 | 10.49 |
| H605-4443500 | 60.33 | 73.03 | 9.53 | 10.49 |
| H605-4612500 | 63 | 73 | 6 | 7 |
| H605-4312000 | 63 | 73 | 11.8 | 13 |
| H605-4312100 | 63 | 78 | 10 | 11 |
| H605-4306500 | 63 | 78 | 11.4 | 12.5 |
| H605-4857800 | 63 | 83 | 11.8 | 13 |
| H605-4443600 | 63.5 | 73.03 | 7.92 | 8.74 |
| H605-4458500 | 63.5 | 73.03 | 9.53 | 10.49 |
| H605-4535900 | 63.5 | 74.6 | 7.21 | 7.92 |
| H605-4553000 | 63.5 | 76.2 | 6.35 | 6.99 |
| H605-4331300 | 63.5 | 76.2 | 7.21 | 7.92 |
| H605-4335900 | 63.5 | 76.2 | 9.53 | 10.49 |
| H605-4346600 | 63.5 | 79.38 | 12.7 | 13.97 |
| H605-4347400 | 63.5 | 82.55 | 15.88 | 17.48 |
| H605-4615900 | 65 | 75 | 6 | 7 |
| H605-4314500 | 65 | 75 | 7.7 | 9 |
| H605-4306600 | 65 | 75 | 11.8 | 13 |
| H605-4703700 | 65 | 77 | 9 | 10 |
| H605-4334500 | 65 | 77.7 | 9.5 | 10.5 |
| H605-4616200 | 65 | 78 | 10 | 11 |
| H605-4612600 | 65 | 80 | 9 | 10 |
| H605-4312200 | 65 | 80 | 11.8 | 13 |
| H605-4612700 | 65 | 85 | 12 | 13 |
| H605-4443700 | 66.68 | 76.2 | 9.53 | 10.49 |
| H605-4514900 | 66.68 | 79.38 | 12.7 | 13.97 |
| H605-4376900 | 66.68 | 82.55 | 15.88 | 17.48 |
| H605-4612800 | 67 | 77 | 6 | 7 |
| H605-4855200 | 68.5 | 76.5 | 8 | 9 |
| H605-4746400 | 69.47 | 82.55 | 7.92 | 8.74 |
| H605-4379100 | 69.85 | 79.38 | 9.53 | 10.49 |
| H605-4336000 | 69.85 | 82.55 | 9.53 | 10.49 |
| H605-4456900 | 69.85 | 85.73 | 9.53 | 10.49 |
| H605-4346700 | 69.85 | 8573 | 12.7 | 13.97 |
| H605-4467400 | 69.85 | 8573 | 20.45 | 22.48 |
| H605-4347500 | 69.85 | 88.9 | 15.88 | 17.48 |
| H605-4863500 | 70 | 78 | 11.4 | 12.5 |
| H605-4615800 | 70 | 80 | 6 | 7 |
| H605-4857900 | 70 | 80 | 11.4 | 12.5 |
| H605-4312300 | 70 | 80 | 11.8 | 13 |
| H605-4494700 | 70 | 82 | 8.7 | 9.6 |
| H605-4323600 | 70 | 82 | 10 | 11 |
| H605-4616400 | 70 | 83 | 10 | 11 |
| H605-4612900 | 70 | 85 | 9 | 10 |
| H605-4302700 | 70 | 85 | 10 | 11 |
| H605-4301200 | 70 | 85 | 11.4 | 12.5 |
| H605-4401400 | 70 | 85 | 20.5 | 22.5 |
| H605-4613000 | 70 | 90 | 12 | 13 |
| H605-4443800 | 73.03 | 82.55 | 9.53 | 10.49 |
| H605-4760200 | 73.03 | 8573 | 9.53 | 10.49 |
| H605-4706300 | 75 | 83 | 11.4 | 12.5 |
| H605-4616800 | 75 | 85 | 6 | 7 |
| H605-4858000 | 75 | 85 | 11.4 | 12.5 |
| H605-4312400 | 75 | 85 | 11.8 | 13 |
| H605-4616300 | 75 | 88 | 10 | 11 |
| H605-4613100 | 75 | 90 | 9 | 10 |
| H605-4862800 | 75 | 90 | 10 | 11 |
| H605-4858100 | 75 | 90 | 11.4 | 12.5 |
| H605-4613200 | 75 | 95 | 12 | 13 |
| H605-4468300 | 76.2 | 8573 | 9.53 | 10.49 |
| H605-4539900 | 76.2 | 87.33 | 7.14 | 7.87 |
| H605-4336100 | 76.2 | 88.9 | 9.53 | 10.49 |
| H605-4399600 | 76.2 | 88.9 | 15.88 | 17.48 |
| H605-4476900 | 76.2 | 88.9 | 19.84 | 21.82 |
| H605-4346800 | 76.2 | 92.08 | 12.7 | 13.97 |
| H605-4347600 | 76.2 | 9525 | 15.88 | 17.48 |
| H605-4863100 | 77 | 87 | 11.8 | 13 |
| H605-4538700 | 78 | 86 | 9 | 10 |
| H605-4863600 | 78 | 86 | 11.4 | 12.5 |
| H605-4399700 | 79.38 | 88.9 | 15.88 | 17.48 |
| H605-4766600 | 80 | 88 | 10.9 | 12 |
| H605-4616000 | 80 | 90 | 6 | 7 |
| H605-4390400 | 80 | 90 | 10 | 11 |
| H605-4312500 | 80 | 90 | 11.8 | 13 |
| H605-4494800 | 80 | 92 | 8.7 | 9.6 |
| H605-4615200 | 80 | 93 | 10 | 11 |
| H605-4613300 | 80 | 95 | 9 | 10 |
| H605-4383500 | 80 | 95 | 10 | 11 |
| H605-4620000 | 80 | 95 | 11.4 | 12.5 |
| H605-4306700 | 80 | 95 | 11.8 | 13 |
| H605-4613400 | 80 | 100 | 12 | 13 |
| H605-4382800 | 80 | 100 | 14.5 | 16 |
| H605-4342900 | 80 | 110 | 16.4 | 18 |
| H605-4714100 | 82.55 | 92.08 | 9.53 | 10.49 |
| H605-4476800 | 82.55 | 92.08 | 14.27 | 15.72 |
| H605-4336200 | 82.55 | 95.25 | 9.53 | 10.49 |
| H605-4415400 | 82.55 | 98.43 | 12.7 | 13.97 |
| H605-4839100 | 85 | 93 | 8.2 | 9 |
| H605-4392700 | 85 | 93 | 10 | 11 |
| H605-4537900 | 85 | 93 | 11.4 | 12.5 |
| H605-4863700 | 85 | 95 | 11.8 | 13 |
| H605-4610600 | 85 | 100 | 9 | 10 |
| H605-4615300 | 85 | 100 | 10 | 11 |
| H605-4306800 | 85 | 100 | 11.8 | 13 |
| H605-4613500 | 85 | 105 | 12 | 13 |
| H605-4760300 | 85.73 | 98.43 | 9.53 | 10.49 |
| H605-4377000 | 85.73 | 101.6 | 15.09 | 16.59 |
| H605-4468400 | 88.9 | 98.43 | 9.53 | 10.49 |
| H605-4540000 | 88.9 | 101.6 | 7.92 | 8.74 |
| H605-4336300 | 88.9 | 101.6 | 9.53 | 10.49 |
| H605-4346900 | 88.9 | 104.78 | 12.7 | 13.97 |
| H605-4347700 | 88.9 | 107.95 | 15.88 | 17.48 |
| H605-4706400 | 90 | 98 | 11.4 | 12.5 |
| H605-4493500 | 90 | 100 | 6.8 | 7.5 |
| H605-4366900 | 90 | 100 | 9 | 10 |
| H605-4858200 | 90 | 100 | 11.4 | 12.5 |
| H605-4314600 | 90 | 100 | 11.8 | 13 |
| H605-4333000 | 90 | 102 | 8.7 | 9.6 |
| H605-4613600 | 90 | 105 | 9 | 10 |
| H605-4615400 | 90 | 105 | 10 | 11 |
| H605-4306900 | 90 | 105 | 11.4 | 12.5 |
| H605-4613700 | 90 | 110 | 12 | 13 |
| H605-4436200 | 92.08 | 104.78 | 9.53 | 10.49 |
| H605-4863200 | 95 | 103 | 11.4 | 12.5 |
| H605-4610700 | 95 | 110 | 9 | 10 |
| H605-4615500 | 95 | 110 | 10 | 11 |
| H605-4617600 | 95 | 110 | 11.8 | 13 |
| H605-4613800 | 95 | 115 | 12 | 13 |
| H605-4702500 | 95.25 | 104.78 | 9.53 | 10.49 |
| H605-4443900 | 95.25 | 107.95 | 9.53 | 10.49 |
| H605-4456500 | 95.25 | 107.95 | 12.7 | 13.97 |
| H605-4436100 | 95.25 | 107.95 | 14.27 | 15.88 |
| H605-4380300 | 96 | 104 | 10.9 | 12 |
| H605-4618200 | 98 | 112 | 8.5 | 9.5 |
| H605-4760400 | 98.43 | 111.13 | 9.53 | 10.49 |
| H605-4766700 | 100 | 108 | 10.9 | 12 |
| H605-4461700 | 100 | 110 | 10.9 | 12 |
| H605-4610800 | 100 | 115 | 9 | 10 |
| H605-4617100 | 100 | 115 | 10 | 11 |
| H605-4312600 | 100 | 115 | 11.8 | 13 |
| H605-4312700 | 100 | 120 | 11.8 | 13 |
| H605-4307000 | 100 | 120 | 14.5 | 16 |
| H605-4468500 | 101.6 | 111.13 | 9.53 | 10.49 |
| H605-4586700 | 101.6 | 114.3 | 7.92 | 8.74 |
| H605-4336400 | 101.6 | 114.3 | 9.53 | 10.49 |
| H605-4385700 | 101.6 | 114.3 | 14.27 | 15.72 |
| H605-4399800 | 101.6 | 114.3 | 19.84 | 21.82 |
| H605-4520100 | 101.6 | 117.48 | 9.53 | 10.49 |
| H605-4347000 | 101.6 | 117.48 | 12.7 | 13.97 |
| H605-4347800 | 101.6 | 120.65 | 15.88 | 17.48 |
| H605-4392800 | 105 | 113 | 10 | 11 |
| H605-4390500 | 105 | 115 | 13.2 | 14.5 |
| H605-4617300 | 105 | 120 | 9 | 10 |
| H605-4617200 | 105 | 120 | 10 | 11 |
| H605-4379500 | 105 | 120 | 14.5 | 16 |
| H605-4617400 | 105 | 125 | 14.5 | 16 |
| H605-4347900 | 107.95 | 127 | 15.88 | 17.48 |
| H605-4329100 | 108 | 123 | 10.9 | 12 |
| H605-4459700 | 110 | 125 | 9 | 10 |
| H605-4537800 | 110 | 125 | 11 | 12 |
| H605-4481600 | 110 | 125 | 14.5 | 16 |
| H605-4312800 | 110 | 130 | 11.8 | 13 |
| H605-4307100 | 110 | 130 | 14.5 | 16 |
| H605-4343000 | 110 | 135 | 14.5 | 16 |
| H605-4760500 | 111.13 | 123.83 | 9.53 | 10.49 |
| H605-4610900 | 112 | 125 | 9 | 10 |
| H605-4379200 | 114.3 | 127 | 9.53 | 10.49 |
| H605-4347100 | 114.3 | 130.18 | 12.7 | 13.97 |
| H605-4444100 | 114.3 | 130.18 | 15.88 | 17.48 |
| H605-4348000 | 114.3 | 133.35 | 15.88 | 17.48 |
| H605-4903400 | 115 | 123 | 11.4 | 12.5 |
| H605-4619300 | 115 | 125 | 11 | 12 |
| H605-4459800 | 115 | 130 | 9 | 10 |
| H605-4434600 | 115 | 130 | 10.9 | 12 |
| H605-4342600 | 115 | 130 | 14.5 | 16 |
| H605-4377100 | 117.48 | 133.35 | 15.88 | 17.48 |
| H605-4706500 | 120 | 128 | 11.4 | 12.5 |
| H605-4461800 | 120 | 130 | 10.9 | 12 |
| H605-4614000 | 120 | 135 | 9 | 10 |
| H605-4614100 | 120 | 140 | 12 | 13 |
| H605-4312900 | 120 | 140 | 14.5 | 16 |
| H605-4714200 | 120.65 | 130.18 | 9.53 | 10.49 |
| H605-4451100 | 120.65 | 133.35 | 15.88 | 17.48 |
| H605-4760600 | 123.83 | 136.53 | 9.53 | 10.49 |
| H605-4618300 | 124 | 134 | 6 | 7 |
| H605-4392900 | 125 | 133 | 10 | 11 |
| H605-4748500 | 125 | 133 | 11.4 | 12.5 |
| H605-4614200 | 125 | 140 | 9 | 10 |
| H605-4618400 | 125 | 140 | 10 | 11 |
| H605-4766500 | 125 | 140 | 10.9 | 12 |
| H605-4614300 | 125 | 145 | 12 | 13 |
| H605-4307300 | 125 | 145 | 14.5 | 16 |
| H605-4367000 | 125 | 150 | 12.5 | 14 |
| H605-4495000 | 127 | 139.7 | 9.53 | 10.49 |
| H605-4386100 | 127 | 139.7 | 14.27 | 15.72 |
| H605-4399900 | 127 | 139.7 | 19.84 | 21.82 |
| H605-4391400 | 127 | 140.49 | 14.15 | 15.72 |
| H605-4347200 | 127 | 142.88 | 12.7 | 13.97 |
| H605-4348100 | 127 | 146.05 | 15.88 | 17.48 |
| H605-4390600 | 130 | 140 | 14.5 | 16 |
| H605-4614400 | 130 | 145 | 9 | 10 |
| H605-4619000 | 130 | 145 | 10 | 11 |
| H605-4614500 | 130 | 150 | 12 | 13 |
| H605-4313000 | 130 | 150 | 14.5 | 16 |
| H605-4436000 | 130.18 | 142.88 | 14.27 | 15.72 |
| H605-4329400 | 132.5 | 157.5 | 13.2 | 14.5 |
| H605-4903500 | 135 | 143 | 11.4 | 12.5 |
| H605-4619400 | 135 | 145 | 11 | 12 |
| H605-4618500 | 135 | 150 | 9 | 10 |
| H605-4537700 | 135 | 150 | 11.4 | 12.5 |
| H605-4475800 | 136.53 | 149.23 | 15.88 | 17.48 |
| H605-4448300 | 136.53 | 152.4 | 15.88 | 17.48 |
| H605-4379300 | 139.7 | 152.4 | 9.53 | 10.49 |
| H605-4468600 | 139.7 | 152.4 | 14.27 | 15.72 |
| H605-4540100 | 139.7 | 155.58 | 7.92 | 8.74 |
| H605-4348200 | 139.7 | 158.75 | 15.88 | 17.48 |
| H605-4617900 | 140 | 150 | 6 | 7 |
| H605-4461900 | 140 | 150 | 10.9 | 12 |
| H605-4625800 | 140 | 150 | 11.8 | 13 |
| H605-4614600 | 140 | 155 | 9 | 10 |
| H605-4555300 | 140 | 155 | 11.8 | 13 |
| H605-4313100 | 140 | 160 | 11.8 | 13 |
| H605-4307400 | 140 | 160 | 14.5 | 16 |
| H605-4714300 | 142.88 | 155.58 | 9.53 | 10.49 |
| H605-4595200 | 150 | 160 | 11 | 12 |
| H605-4614700 | 150 | 165 | 9 | 10 |
| H605-4614800 | 150 | 170 | 12 | 13 |
| H605-4367100 | 150 | 170 | 13.2 | 14.5 |
| H605-4342800 | 150 | 170 | 14.5 | 16 |
| H605-4538800 | 151 | 159 | 9 | 10 |
| H605-4436500 | 152.4 | 165.1 | 14.27 | 15.72 |
| H605-4400000 | 152.4 | 165.1 | 19.84 | 21.82 |
| H605-4391000 | 152.4 | 165.89 | 14.27 | 15.72 |
| H605-4348300 | 152.4 | 171.45 | 15.88 | 17.48 |
| H605-4903600 | 155 | 163 | 11.4 | 12.5 |
| H605-4618600 | 155 | 165 | 6 | 7 |
| H605-4619500 | 155 | 165 | 11 | 12 |
| H605-4618700 | 155 | 170 | 9 | 10 |
| H605-4342700 | 155 | 170 | 14.5 | 16 |
| H605-4614900 | 160 | 175 | 9 | 10 |
| H605-4462000 | 160 | 175 | 10.9 | 12 |
| H605-4615000 | 160 | 180 | 12 | 13 |
| H605-4345000 | 160 | 180 | 14.5 | 16 |
| H605-4616500 | 165 | 180 | 9 | 10 |
| H605-4348400 | 165.1 | 184.15 | 15.88 | 17.48 |
| H605-4618800 | 170 | 180 | 6 | 7 |
| H605-4625900 | 170 | 180 | 11.8 | 13 |
| H605-4618000 | 170 | 185 | 9 | 10 |
| H605-4398800 | 170 | 190 | 14.5 | 16 |
| H605-4436600 | 177.8 | 190.5 | 14.27 | 15.72 |
| H605-4456600 | 177.8 | 190.5 | 19.81 | 21.82 |
| H605-4391100 | 177.8 | 191.29 | 14.27 | 15.72 |
| H605-4348500 | 177.8 | 196.85 | 15.88 | 17.48 |
| H605-4617800 | 180 | 190 | 11 | 12 |
| H605-4619600 | 180 | 192 | 12.5 | 14 |
| H605-4314700 | 180 | 200 | 11.8 | 13 |
| H605-4560900 | 180 | 200 | 14.5 | 16 |
| H605-4462100 | 185 | 200 | 10.9 | 12 |
| H605-4896600 | 190 | 210 | 14.5 | 16 |
| H605-4749400 | 190 | 215 | 18.5 | 20 |
| H605-4714400 | 190.5 | 203.2 | 9.53 | 10.49 |
| H605-4353900 | 196.85 | 215.9 | 15.88 | 17.48 |
| H605-4615100 | 200 | 220 | 12 | 13 |
| H605-4380200 | 200 | 220 | 14.5 | 16 |
| H605-4733400 | 203.2 | 215.9 | 9.53 | 10.49 |
| H605-4468700 | 203.2 | 215.9 | 14.27 | 15.72 |
| H605-4510500 | 203.2 | 222.25 | 15.88 | 17.48 |
| H605-4522400 | 205 | 220 | 12.2 | 13.5 |
| H605-4477000 | 206.38 | 219.08 | 19.84 | 21.82 |
| H605-4625200 | 210 | 222 | 12.3 | 13.5 |
| H605-4733500 | 215.9 | 228.6 | 9.53 | 10.49 |
| H605-4555400 | 220 | 240 | 14.5 | 16 |
| H605-4468800 | 228.6 | 241.3 | 14.27 | 15.72 |
| H605-4499300 | 234.95 | 254 | 15.88 | 17.48 |
| H605-4477100 | 238.13 | 250.83 | 19.84 | 21.82 |
| H605-4626300 | 240 | 260 | 14.5 | 16 |
| H605-4733600 | 247.65 | 260.35 | 9.53 | 10.49 |
| H605-4468900 | 254 | 266.7 | 14.27 | 15.72 |
| H605-4629700 | 255 | 275 | 14.5 | 16 |
| H605-4625300 | 260 | 270 | 12.3 | 13.5 |
| H605-4859300 | 260 | 280 | 14.5 | 16 |
| H605-4896200 | 290 | 310 | 14.5 | 16 |
| H605-4587400 | 330 | 350 | 18 | 20 |
Applications
- Hydraulic cylinders on excavators, loaders, cranes and other mobile machinery
- Industrial cylinders, presses and hydraulic power units
- Replacement seal programmes for maintenance and repair workshops
Request a quote
Send your part number, size list or drawing with quantity to DJF Seal for a quotation. We supply B2B, wholesale and OEM volumes with export packing.
Write your message here and send it to us
