R06 Main Oil Seal Rod Seals | DJF

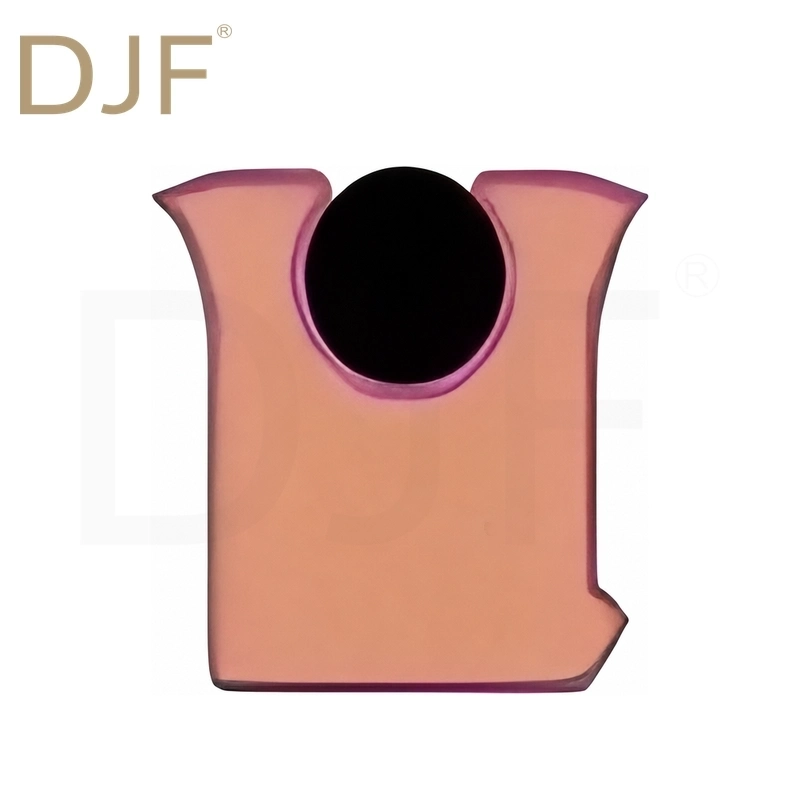

R06 Main Rod Seal overview
R06 Main Oil Seal Rod Seal is manufactured by DJF Seal for hydraulic cylinders used in construction equipment. DJF is a direct hydraulic seal manufacturer and wholesale supplier, serving repair workshops, equipment dealers and OEM buyers worldwide. This listing groups the DJF / R06 Main Rod Seal profile in its full available size range. Customization supported!
Key parameters
| Parameter | Value |
|---|---|
| Material | Polyurethane + NBR |
| Performance | Capable of withstanding working pressures exceeding 30 MPa; the operating temperature range for standard NBR/PU materials is approximately -35°C to +100°C. |
| Application | Its overall structure resists extrusion into the sealing gap under high pressure, making it suitable for heavy-duty, high-pressure applications such as construction machinery and injection molding machines. |
Available sizes
47 size(s) recorded for this profile. Dimensions in millimetres unless noted otherwise.
| Inner Diameter (d) | Outer Diameter (D) | Height (H) |
|---|---|---|
| 55 | 70 | 9 |
| 60 | 73 | 10 |
| 60 | 75 | 9 |
| 65 | 78 | 10 |
| 65 | 80 | 9 |
| 70 | 83 | 10 |
| 70 | 85 | 9 |
| 75 | 88 | 10 |
| 75 | 90 | 9 |
| 80 | 90 | 6 |
| 80 | 93 | 10 |
| 80 | 95 | 10 |
| 80 | 95 | 9 |
| 85 | 100 | 10 |
| 85 | 100 | 9 |
| 85 | 105 | 12 |
| 90 | 105 | 10 |
| 90 | 105 | 9 |
| 90 | 110 | 12 |
| 95 | 110 | 10 |
| 95 | 110 | 9 |
| 95 | 115 | 12 |
| 100 | 115 | 10 |
| 100 | 115 | 9 |
| 100 | 120 | 12 |
| 100 | 120 | 15 |
| 105 | 120 | 10 |
| 105 | 120 | 9 |
| 105 | 125 | 12 |
| 105 | 125 | 15 |
| 110 | 125 | 10 |
| 110 | 125 | 9 |
| 110 | 130 | 10 |
| 110 | 130 | 12 |
| 110 | 130 | 15 |
| 115 | 130 | 10 |
| 115 | 130 | 9 |
| 115 | 135 | 12 |
| 115 | 135 | 16 |
| 120 | 135 | 9 |
| 120 | 140 | 10 |
| 120 | 140 | 12 |
| 120 | 140 | 15 |
| 130 | 145 | 9 |
| 130 | 145 | 10 |
| 130 | 150 | 12 |
| 130 | 150 | 16 |
Applications
- Hydraulic cylinders on excavators, loaders, cranes and other mobile machinery
- Industrial cylinders, presses and hydraulic power units
- Replacement seal programmes for maintenance and repair workshops
Request a quote
Send your part number, size list or drawing with quantity to DJF Seal for a quotation. We supply B2B, wholesale and OEM volumes with export packing.
