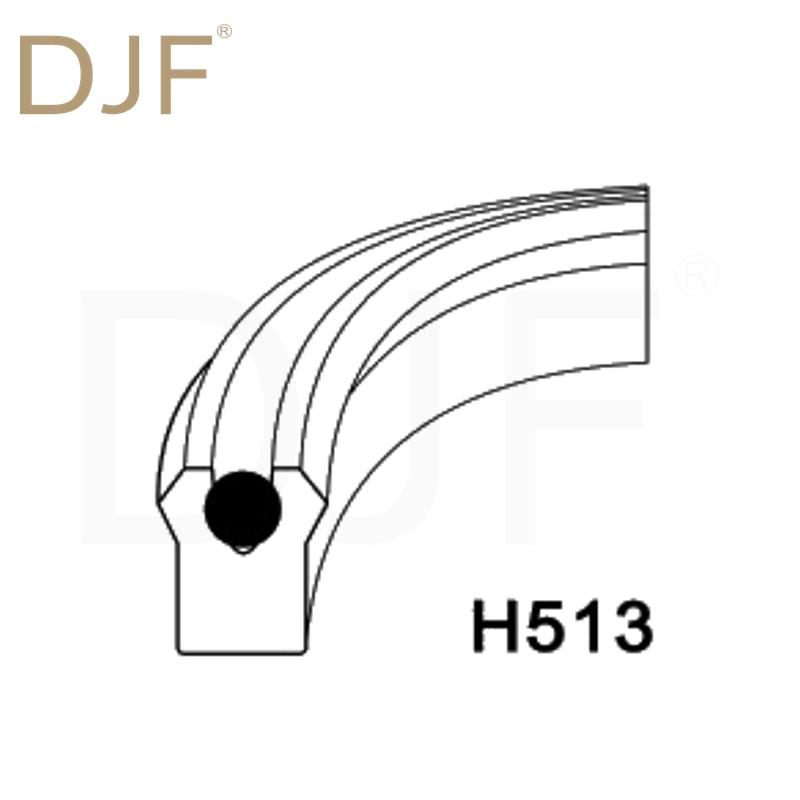

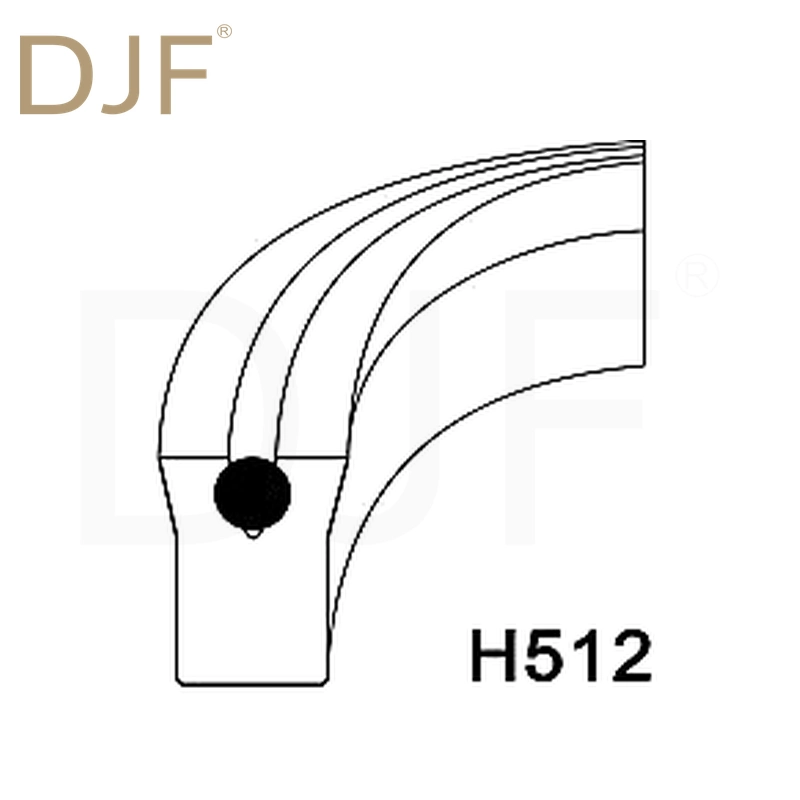

H511 / H512 / H513 U-cup Rod Seal
H511 / H512 / H513 U-cup Rod Seal overview
H511, H512, and H513 U-cup rod seals offer exceptional wear resistance, high-pressure tolerance, and leak-free performance for heavy-duty cylinders. Source bulk & custom sizes directly from DJF manufacturer. Inquiry now for a free quote!
Key parameters
| Parameter | Value |
|---|---|
| Part Number | H511 / H512 / H513 |
| Material | Polyurethane + Nitrile |
| Performance | Temperature range -40°C to +110°C; |
Available sizes
60 size(s) recorded for this profile. Dimensions in inches unless noted otherwise.
| Inner Diameter (ID) | Outer Diameter (OD) | Height (H) |
|---|---|---|
| 0.25 | 0.5 | 0.1875 |
| 0.25 | 0.5 | 0.25 |
| 0.75 | 1 | 0.25 |
| 0.75 | 1.125 | 0.25 |
| 0.875 | 1.125 | 0.25 |
| 0.875 | 1.375 | 0.375 |
| 1 | 1.25 | 0.1875 |
| 1.125 | 1.375 | 0.25 |
| 1.125 | 1.5 | 0.25 |
| 1.125 | 1.5 | 0.3125 |
| 1.25 | 1.5 | 0.1875 |
| 1.25 | 1.5 | 0.25 |
| 1.25 | 1.625 | 0.25 |
| 1.375 | 1.625 | 0.187 |
| 1.375 | 1.75 | 0.25 |
| 1.375 | 1.75 | 0.375 |
| 1.5 | 1.75 | 0.25 |
| 1.5 | 1.875 | 0.3125 |
| 1.5 | 2 | 0.375 |
| 1.625 | 2 | 0.25 |
| 1.625 | 2.125 | 0.375 |
| 1.75 | 2.125 | 0.3125 |
| 1.875 | 2.125 | 0.187 |
| 1.875 | 2.25 | 0.375 |
| 2 | 2.375 | 0.25 |
| 2 | 2.375 | 0.3125 |
| 2 | 2.5 | 0.375 |
| 2 | 2.625 | 0.5 |
| 2.125 | 2.5 | 0.25 |
| 2.125 | 2.5 | 0.375 |
| 2.25 | 2.625 | 0.3125 |
| 2.5 | 3.5 | 0.75 |
| 2.625 | 3.125 | 0.375 |
| 2.75 | 3.375 | 0.375 |
| 3.125 | 3.5 | 0.375 |
| 3.125 | 3.625 | 0.375 |
| 3.25 | 4 | 0.625 |
| 3.5 | 3.875 | 0.375 |
| 3.5 | 4 | 0.375 |
| 3.75 | 4.25 | 0.375 |
| 3.75 | 4.5 | 0.625 |
| 4 | 4.5 | 0.5625 |
| 4 | 4.625 | 0.5625 |
| 4.125 | 4.625 | 0.375 |
| 4.375 | 4.75 | 0.375 |
| 4.5 | 5 | 0.375 |
| 4.5 | 5.25 | 0.5 |
| 4.75 | 5.125 | 0.375 |
| 5 | 5.5 | 0.375 |
| 5.25 | 5.75 | 0.5625 |
| 5.5 | 6.25 | 0.625 |
| 5.75 | 6.25 | 0.375 |
| 5.75 | 6.25 | 0.5625 |
| 6 | 6.75 | 0.5 |
| 6.25 | 7 | 0.625 |
| 6.5 | 7.25 | 0.5 |
| 6.75 | 7.25 | 0.5625 |
| 7 | 7.5 | 0.375 |
| 7.25 | 8 | 0.5 |
| 7.5 | 8.25 | 0.5 |
Applications

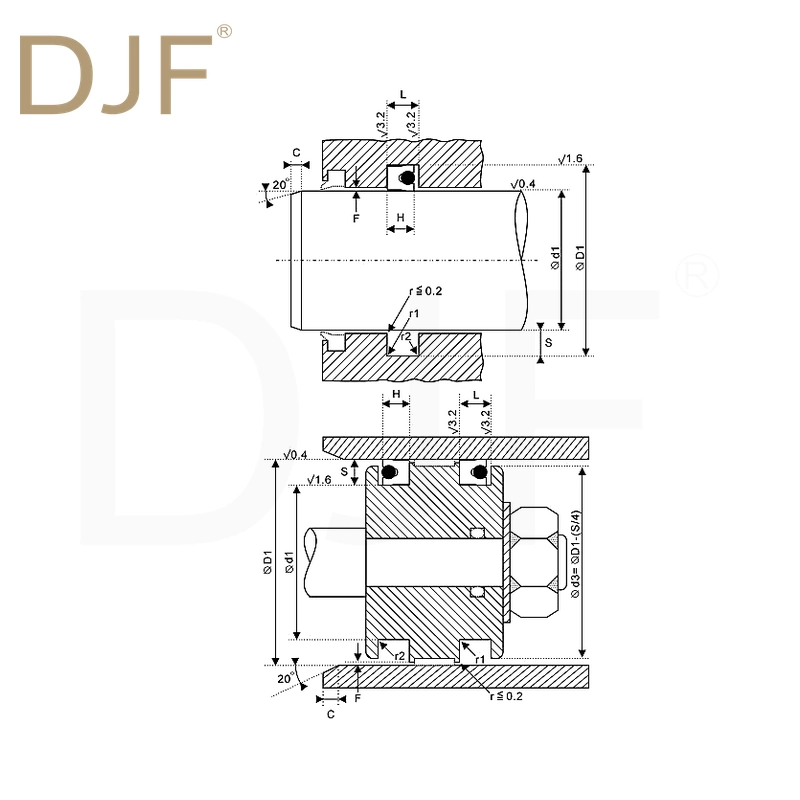

- Hydraulic cylinders on excavators, loaders, cranes and other mobile machinery
- Industrial cylinders, presses and hydraulic power units
- Replacement seal programmes for maintenance and repair workshops
Request a quote
Send your part number, size list or drawing with quantity to DJF Seal for a quotation. We supply B2B, wholesale and OEM volumes with export packing.
