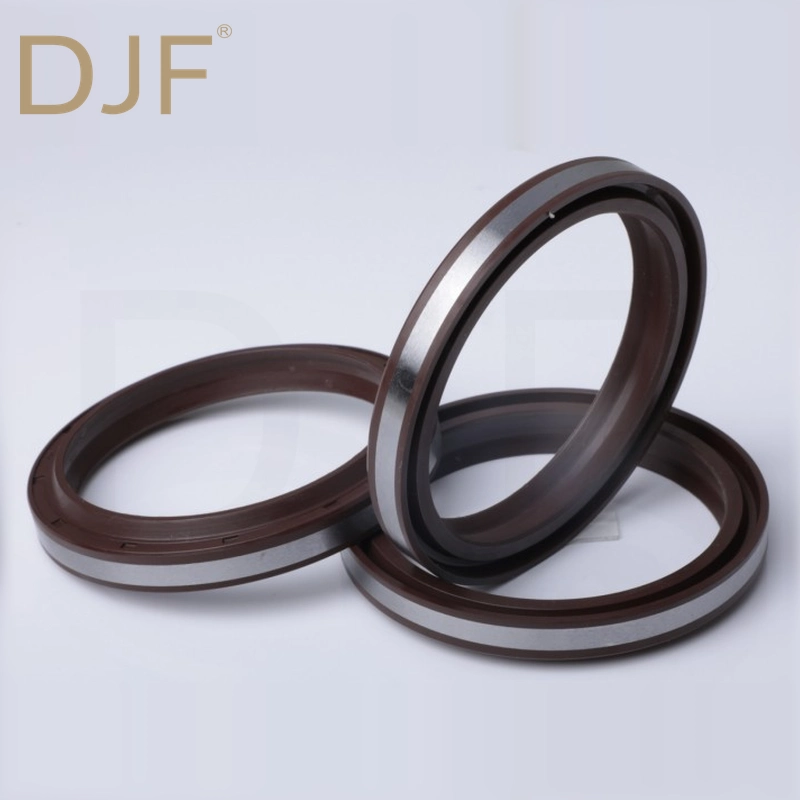

DKBI Wiper Seal / Dust Seal | DJF Factory Wholesale

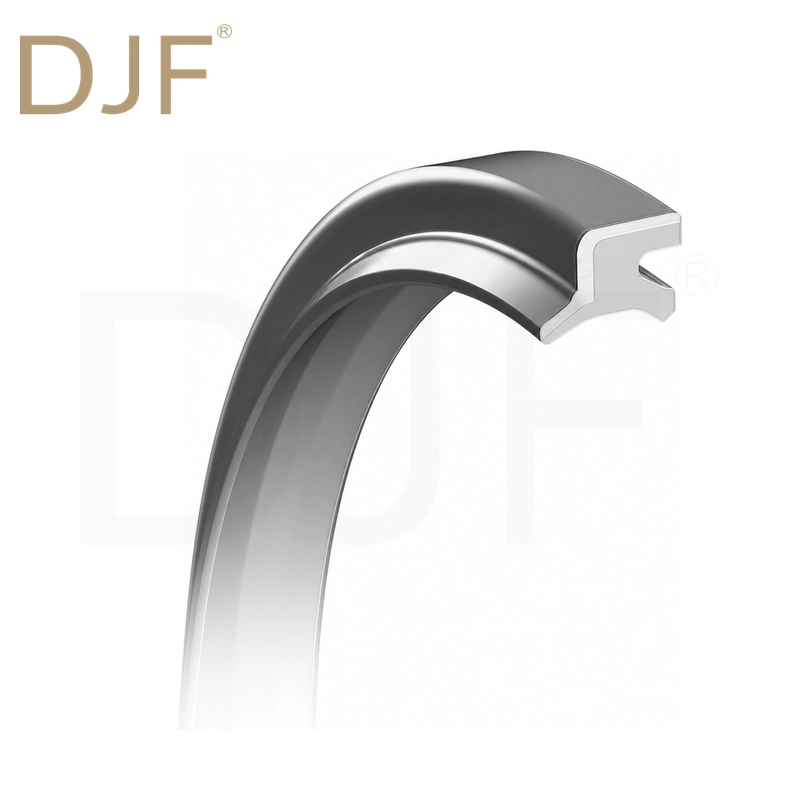

DKBI Wiper Seal / Dust Seal overview
Looking for reliable DKBI wiper seals / dust seals? DJF as the top hydraulic seals factory, we manufacture high-performance DKBI dust seals with metal cases and durable PU/NBR materials for hydraulic cylinders. Get factory price, custom sizes, and fast global shipping. Inquire now for a free quote!
Key parameters
| Parameter | Value |
|---|---|
| Material | NBR/Polyurethane + Iron |
| Performance | Pressure ≤ 50 MPa, Temperature: -30°C to 100°C |
| Function | Suitable for reciprocating, oscillating, or rotary motion systems; features effective dust-scraping performance, wear resistance, and a long service life. |
Available sizes
41 size(s) recorded for this profile. Dimensions in millimetres unless noted otherwise.

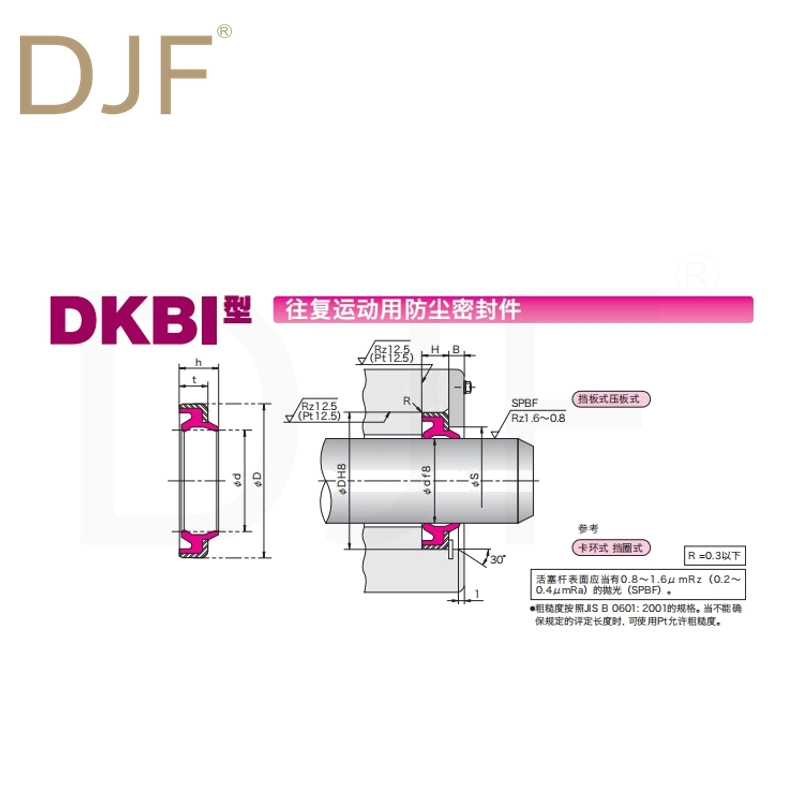

| Inner Diameter | Outer Diameter | Height | Groove Width |
|---|---|---|---|
| 12 | 22 | 4 | 7 |
| 20 | 32 | 6 | 9 |
| 25 | 37 | 6 | 9 |
| 30 | 42 | 6 | 9 |
| 30 | 47 | 7 | 10 |
| 32 | 44 | 7 | 10 |
| 35 | 47 | 6 | 9 |
| 35 | 52 | 8 | 11 |
| 40 | 52 | 7 | 10 |
| 45 | 57 | 7 | 10 |
| 45 | 68 | 8 | 11 |
| 50 | 62 | 7 | 10 |
| 50 | 64 | 7 | 10 |
| 50 | 72 | 7 | 10 |
| 55 | 69 | 8 | 11 |
| 60 | 74 | 8 | 11 |
| 60 | 82 | 8 | 11 |
| 65 | 79 | 8 | 11 |
| 70 | 84 | 8 | 11 |
| 75 | 89 | 8 | 11 |
| 80 | 92 | 8 | 11 |
| 80 | 94 | 8 | 11 |
| 85 | 99 | 8 | 11 |
| 90 | 104 | 8 | 11 |
| 95 | 107 | 8 | 11 |
| 95 | 109 | 8 | 11 |
| 100 | 114 | 8 | 11 |
| 105 | 121 | 9 | 12 |
| 110 | 126 | 9 | 12 |
| 115 | 131 | 9 | 12 |
| 120 | 136 | 9 | 12 |
| 125 | 141 | 9 | 12 |
| 130 | 146 | 9 | 12 |
| 140 | 160 | 10 | 14 |
| 145 | 165 | 10 | 14 |
| 150 | 170 | 10 | 14 |
| 160 | 180 | 10 | 14 |
| 170 | 190 | 10 | 14 |
| 180 | 200 | 10 | 14 |
| 180 | 205 | 12 | 16 |
| 200 | 225 | 12 | 16 |
Selection guide
To select the correct part, confirm the cylinder bore and rod diameter, the groove dimensions, the operating pressure and temperature, and the medium used. Check rod, housing, height and groove dimensions before ordering. Where a value is not stated above, confirm against drawing before ordering.
Request a quote
Send your part number, size list or drawing with quantity to DJF Seal for a quotation. We supply B2B, wholesale and OEM volumes with export packing.
