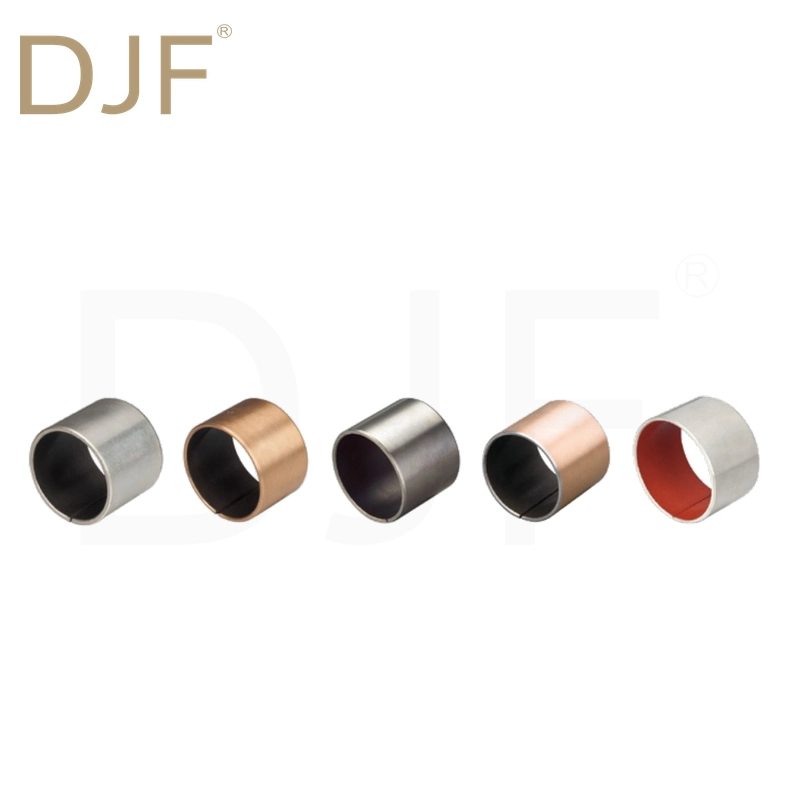

Guide Ring Bushing / Cup Bushing

Guide Ring Bushing / Cup Bushing
  • Guide Ring Bushing / Cup Bushing
  • Guide Ring Bushing / Cup Bushing
  • Guide Ring Bushing / Cup Bushing
  • Guide Ring Bushing / Cup Bushing

Short Description:

Bushing / Guide Bushing (Cup Bushing) overview Premium wholesale Bushing / Guide Bushing (Cup Bushing). DJF is a direct hydraulic seal manufacturer and wholesale supplier, serving repair workshops, equipment dealers...


  • Material: Low-carbon steel + porous copper powder + PTFE/oleophilic fibers

Product Detail

Product Tags

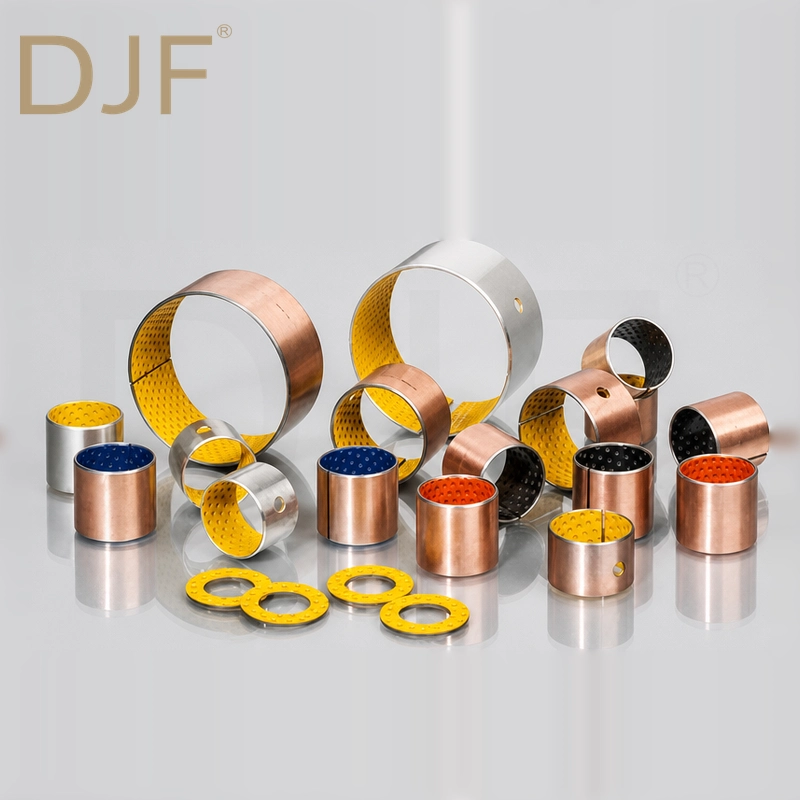

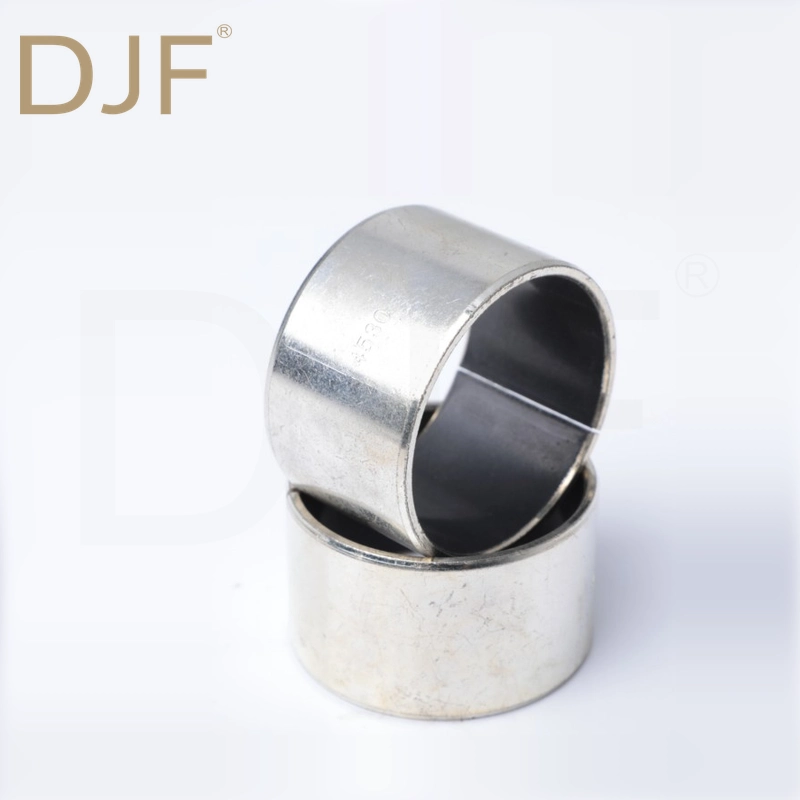

Bushing / Guide Bushing (Cup Bushing) overview

Premium wholesale Bushing / Guide Bushing (Cup Bushing). DJF is a direct hydraulic seal manufacturer and wholesale supplier, serving repair workshops, equipment dealers and OEM buyers worldwide. Custom sizes, bulk supply, and certified quality. Request your free catalog and sample now.

Key parameters

Parameter Value
Material Low-carbon steel + porous copper powder + PTFE/oleophilic fibers
Functions 1. Load-bearing and friction reduction: Supports the radial load of the piston rod, prevents direct metal-to-metal contact, and reduces wear.
2. Seal protection: Prevents uneven wear on the piston rod from compressing or damaging the seal, thereby extending the seal’s service life and reducing oil leakage.

Available sizes

185 size(s) recorded for this profile. Dimensions in millimetres unless noted otherwise.

Inner Diameter Outer Diameter Height
6 11 10
10 15 6
10 15 10
12 17 10
13 15 15
14 19 15
14 16 15
14 19 30
15 20 15
16 21 15
16 18 15
16 21 20
16 21 25
16 21 30
18 23 12
18 23 20
18 20 15
18 23 25
18 23 30
19 24 20
20 25 20
20 22 15
20 23 15
20 25 25
20 25 30
21 26 20
22 27 20
22 24 15
22 25 15
22 27 30
23 28 20
24 29 15
24 29 25
24 27 30
25 30 25
25 28 15
25 30 30
26 31 20
26 31 30
28 33 20
28 33 25
28 33 30
30 35 10
30 35 15
30 35 20
30 35 25
30 35 30
30 35 40
32 37 30
32 36 25
32 36 40
35 40 15
35 40 20
35 40 25
35 40 30
35 39 20
35 39 30
35 40 40
38 43 35
40 45 15
40 45 20
40 45 25
40 45 30
40 45 40
40 45 45
40 45 50
45 50 20
45 50 25
45 50 30
45 50 35
45 50 50
45 50 30
48 53 25
50 55 20
50 55 25
50 55 30
50 55 35
50 55 40
50 55 45
50 56 33
55 60 25
55 60 30
55 60 35
55 60 40
55 60 50
60 65 20
60 65 25
60 65 30
60 65 35
60 65 40
60 65 45
60 65 50
60 65 60
65 70 30
65 70 35
65 70 40
65 70 50
70 75 30
70 75 35
70 75 40
70 75 45
70 75 60
70 75 80
75 80 30
75 80 35
75 80 40
75 80 45
75 80 50
80 85 30
80 85 35
80 85 40
80 85 45
80 85 60
85 90 30
85 90 35
85 90 40
85 90 45
85 90 50
90 95 30
90 95 35
90 95 40
90 95 45
90 95 50
90 95 60
95 100 30
95 100 35
95 100 40
95 100 45
95 100 50
100 105 25
100 105 30
100 105 35
100 105 40
100 105 45
100 105 50
100 105 60
105 110 30
105 110 35
105 110 40
105 110 45
105 110 50
105 110 60
110 115 30
110 115 35
110 115 40
110 115 45
110 115 50
110 115 55
110 115 60
115 120 35
115 120 40
115 120 45
115 120 50
115 120 60
120 125 30
120 125 35
120 125 40
120 125 45
120 125 50
120 125 60
125 130 50
130 135 35
130 135 40
130 135 45
130 135 50
130 135 60
135 140 50
140 145 40
140 145 45
140 145 50
140 145 55
140 145 60
140 145 65
140 145 70
145 150 60
150 155 40
150 155 50
150 155 60
160 165 40
160 165 50
160 165 60
170 175 40
170 175 50
220 225 120
450 455 125

Applications

  • Hydraulic cylinders on excavators, loaders, cranes and other mobile machinery
  • Industrial cylinders, presses and hydraulic power units
  • Replacement seal programmes for maintenance and repair workshops

Request a quote

Send your part number, size list or drawing with quantity to DJF Seal for a quotation. We supply B2B, wholesale and OEM volumes with export packing.
