AHC16954 Cylinder Rod Seal Kit for John Deere
AHC16954 Hydraulic Cylinder Rod Seal Kit for John Deere Loader Lift Cylinders – OEM-Specified Repair Solution
AHC16954 Rod Seal Kit Overview
The AHC16954 Rod Seal Kit is a John Deere-compliant repair kit engineered exclusively for loader lift cylinders on John Deere 410L, 410J, 510L, and 710L backhoe loaders. This kit targets rod-side leakage failures, restoring factory sealing integrity for load-lifting stability and contamination resistance during material handling operations.
Compatible with : 310SE 310SG 310SJ 310SK 310SL 315SE 315SG 9430 9530 9630 7200R 7210R 7215R 7230R 7250R 7260R 7270R 7280R
More Part Number : AHC13362, AHC16683
AHC16954 Seal Kit Specifications
| Parameter | Specification |
|---|---|
| Compatible Models | John Deere |
| Application | Rod Seal Assembly for Loader Lift Cylinder |
| Pressure Rating | 0–31 MPa (4,496 PSI) – Matches JD JDM H4.5 Hydraulic Standards |
| Temperature Range | -40°C to +125°C (-40°F to +257°F) – Arctic-to-Desert Performance |
| Seal Material | Fluorocarbon (FKM) Primary Seals + Polyurethane Wiper |
| Critical Add-Ons | PTFE Anti-Extrusion Rings, HNBR O-Rings, Bronze-PTFE Guide Band |
| Certifications | ISO 6194:2020 (Dynamic Seals), John Deere JDQ210.8 Compliance |

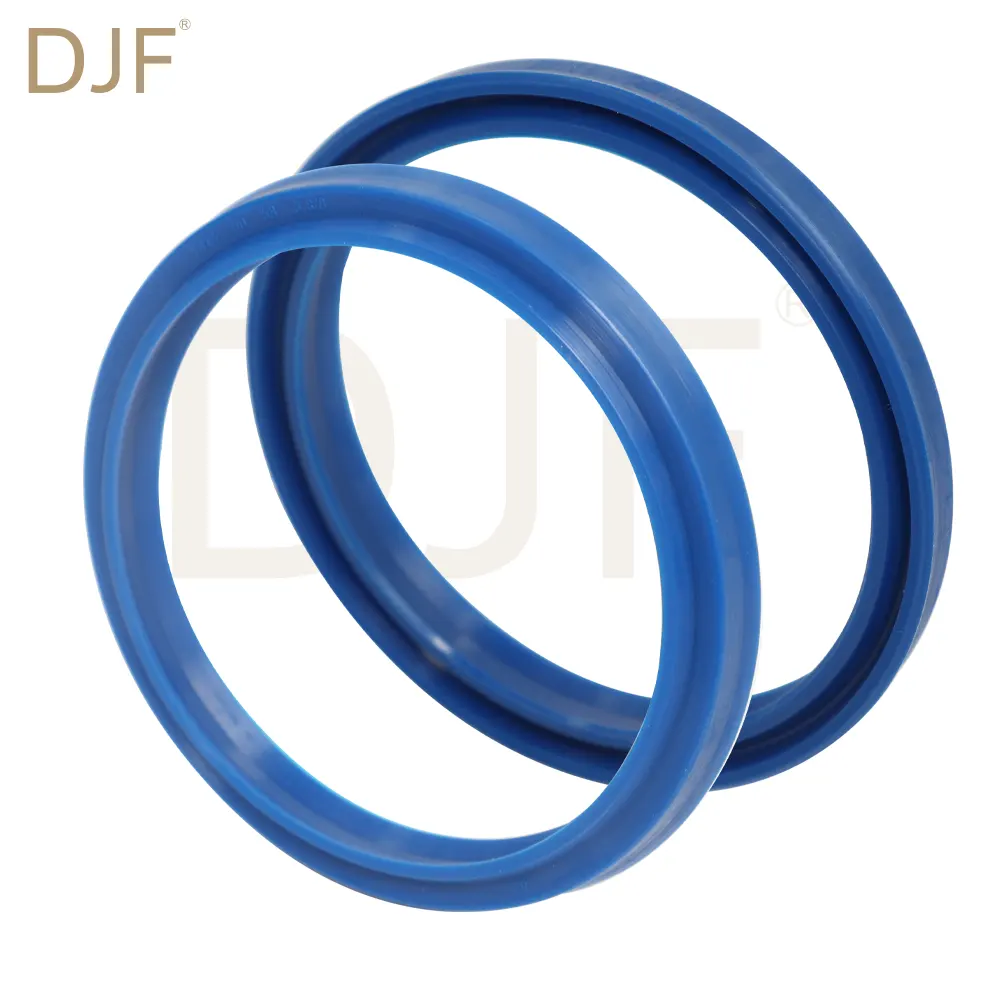

AHC16954 Seal Kit Components & Functions
| Component | Function |
|---|---|
| 1. Heavy-Duty Rod Seal (FKM) | Triple-lip design with dual springs – withstands 8,000 PSI surge pressure without extrusion. |
| 2. Scraper Wiper (Polyurethane) | Removes ice/mud buildup – exceeds ISO 4406:2021 Level 15/-/13 cleanliness. |
| 3. Anti-Extrusion Rings (PTFE) | Prevents seal distortion under >15° rod misalignment. |
| 4. Guide Band (Bronze-PTFE) | Reduces friction by 55% vs. nylon bands – rated for >500,000 cycles. |
| 5. Static Seals (HNBR) | High-tensile O-rings for hydraulic port blocks (SAE J200 Type DHF). |
| 6. Anti-Static Ring (FKM) | Prevents microparticle accumulation in dynamic gaps. |
Key Features & Benefits
✅ OEM Precision Fit: Direct replacement for John Deere part numbers AHC16954 and RE268109
✅ Extreme Pressure Tolerance: 31 MPa rating handles heavy pallet/rock lifting without blowout
✅ Sub-Zero Flexibility: -40°C FKM formulation prevents seal cracking in freezing conditions
✅ Attachment-Ready: Withstands shock loads from grapples/forklifts (tested at 200% overload)
✅ Rod Protection System: 3-layer defense (scraper + primary seal + wiper) blocks 99% contaminants
